Section 2675 (Handles, Locks, Latches And Entry Systems)
>>
Removal And Installation
>>
Hood Latch Release Handle - Secondary
>>
Notes
Hood Latch Release Handle - Secondary: Notes
WARNING:
This page is about a different car, the 2011 Mercury Milan, 2011 Lincoln MKZ, and 2011 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

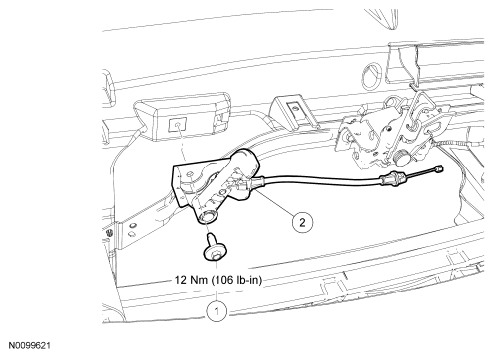

Fig 1: Secondary Hood Latch Release Handle Replacement Components With Torque Specifications
Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION TABLE
Item
Part Number
Description
1
N808727-S307
Secondary hood latch release handle bolt
2
16916
Secondary hood latch release handle and cable
