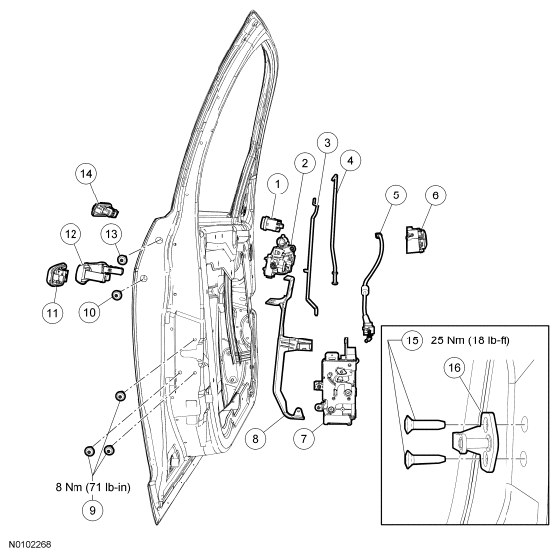

Front Door Handles, Locks and Latches - Exploded View
WARNING: This page is about a different car, the 2011 Mercury Milan, 2011 Lincoln MKZ, and 2011 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
ITEM DESCRIPTION TABLE
| Item | Part Number | Description |
|---|---|---|
| 1 | 5421991 | Door lock cylinder (driver door only) |
| 2 | 5426685/5426684 | Exterior front door handle reinforcement (LH/RH) |
| 3 | 5422135 | Front door lock cylinder actuating rod (driver door only) |
| 4 | 5422153/5422152 | Exterior door handle actuating rod (LH/RH) |
| 5 | 54221A00 | Interior door handle actuating cable |
| 6 | 5422601/5422600 | Interior door handle (LH/RH) |
| 7 | 5421813/5421812 | Front door latch (LH/RH) |
| 8 | - | Door latch carrier (LH/RH) |
| 9 | W705830-S901 | Front door latch bolts (3 required) |
| 10 | - | Grommet |
| 11 | 54218A14/5422088 | Exterior door handle bezel (LH/RH) |
| 12 | 5422404 | Exterior front door handle |
| 13 | - | Grommet |
| 14 | 14A626 | Keyless entry keypad |
| 15 | W711379-S900 | Striker bolts (2 required) |
| 16 | 5422008 | Striker |
- For additional information, refer to the appropriate procedures in this service information.
