Seat Cushion - Rear: Notes
WARNING: This page is about a different car, the 2011 Mercury Milan, 2011 Lincoln MKZ, and 2011 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

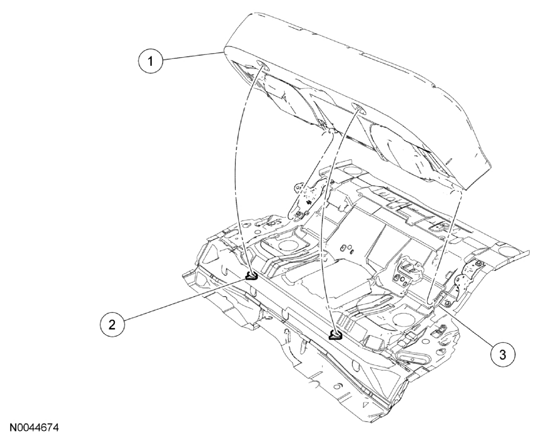

NOTE:
Backrest pad and frame removed for clarity.
Courtesy of FORD MOTOR CO. ITEM DESCRIPTION
| Item |
Part Number |
Description |
| 1 |
- |
Cushion assembly |
| 2 |
624A14 |
Cushion latch (2 required) |
| 3 |
- |
Cushion rear retainer (2 required, part of rear seat backrest) |
