Special Tool(s)

WARNING: This page is about a different car, the 2011 Mercury Milan, 2011 Lincoln MKZ, and 2011 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

SPECIAL TOOL(S)

Vehicle Communication Module (VCM) and Integrated Diagnostic System (IDS) software with appropriate hardware, or equivalent scan tool

NOTE: Passenger seat shown in the illustration, driver seat similar.

NOTE: The seat track-to-floor bolts must be tightened in the sequence described in this procedure.

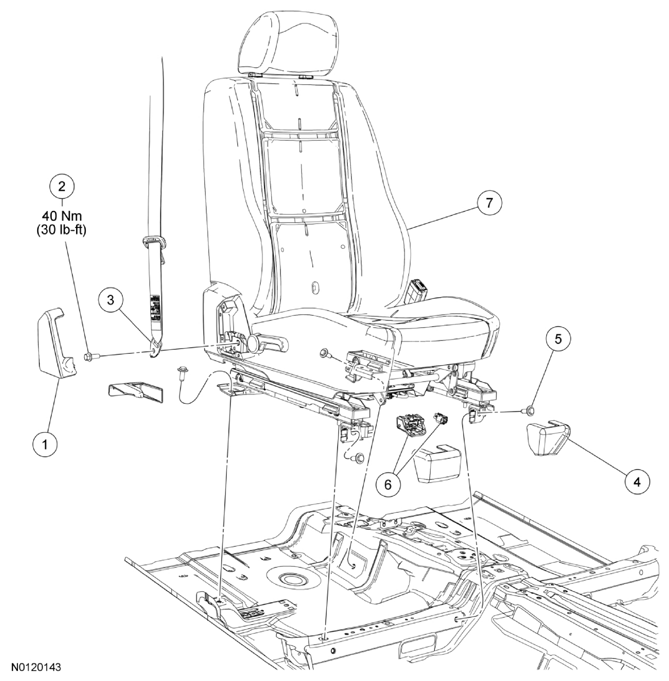

Fig 1: Exploded View Of Front Seat Components With Torque Specifications

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION

Item	Part Number	Description
1	621A44	Safety belt retractor belt anchor bolt cover (part of 62184) (passenger only)
2	W505274	Safety belt retractor belt anchor bolt (passenger only)
3	-	Safety belt retractor belt anchor (part of 611B08) (passenger only)
4	61748	(passenger)/61749 (driver) Seat-to-floor bolt cover (4 required)
5	W707858	Seat-to-floor bolt (4 required)
6	-	Electrical connectors (part of 14A698)
7	-	Front seat assembly
