Driver Seat Cushion
WARNING: This page is about a different car, the 2011 Mercury Milan, 2011 Lincoln MKZ, and 2011 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

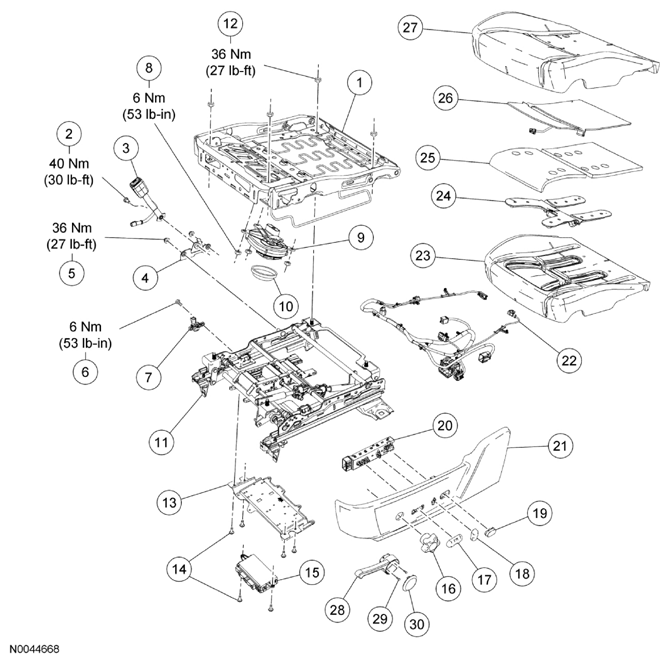

Power seat track shown in the illustration, manual seat track similar.
ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | 63101 | Cushion frame |
| 2 | - | Bolt, safety belt buckle (part of 61203) |
| 3 | 61203 | Safety belt buckle |
| 4 | 610D09 | Safety belt buckle bracket |
| 5 | W520113 | Nut, safety belt buckle bracket-to-seat track (2 required) |
| 6 | W505256 | Bolt, seat position sensor (part of 61203) (driver only) |
| 7 | 14B416 | Seat position sensor (driver only) |
| 8 | N620480 | Nut, cushion Thermo-Electric Device (TED) (3 required) (if equipped) |
| 9 | 19N550 | Cushion TED (if equipped) |
| 10 | 19E880 | Cushion TED filter (if equipped) |
| 11 | 61711 | Seat track |
| 12 | W520113 | Seat track-to-cushion frame nut (4 required) |
| 13 | 610E34 | Electrical bracket |
| 14 | - | Pop rivets (4 required) |
| 15 | 14C708 | Driver Seat Module (DSM) (if equipped) |
| 16 | 62622 | Manual lumbar control knob (if equipped) |
| 17 | 14711 | Seat control switch knob (if equipped) |
| 18 | 14711 | Power recline switch knob (if equipped) |
| 19 | 14711 | Power lumbar switch knob (if equipped) |
| 20 | 14A701 | Seat control switch (if equipped) |
| 21 | 62187 | Cushion side shield |
| 22 | 14A699 | Driver seat wire harness |
| 23 | 632A23 | Cushion foam pad |
| 24 | - | Cushion manifold, climate controlled seat (part of 632A23) (if equipped) |
| 25 | - | Cushion insert (part of 632A23) (if equipped) |
| 26 | 14D696 | Cushion heater mat (if equipped) |
| 27 | 62900 | Cushion trim cover |
| 28 | 61753 | Manual height adjust handle (if equipped) |
| 29 | W711217 | Screw, manual height adjust handle (if equipped) |
| 30 | 62768 | Cover, manual height adjust handle (if equipped) |
