Seat Latch Adjustment - Rear

WARNING: This page is about a different car, the 2011 Mercury Milan, 2011 Lincoln MKZ, and 2011 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the parcel shelf. For additional information, refer to INTERIOR TRIM & ORNAMENTATION -- FUSION, MILAN & MKZ article.
  2. Loosen the 2 rear seat backrest latch nuts. Adjust the latch position as necessary for good backrest fit and latch closure when upright.
    • Tighten to 48 Nm (35 lb-ft).

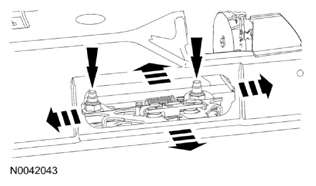

    Fig 1: Locating Rear Seat Backrest Latch Nuts
    G07788945Courtesy of FORD MOTOR CO.
  3. Install the parcel shelf. For additional information, refer to INTERIOR TRIM & ORNAMENTATION -- FUSION, MILAN & MKZ article.
