Seat Backrest - Rear, 60 Percent: Notes
WARNING: This page is about a different car, the 2011 Mercury Milan, 2011 Lincoln MKZ, and 2011 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

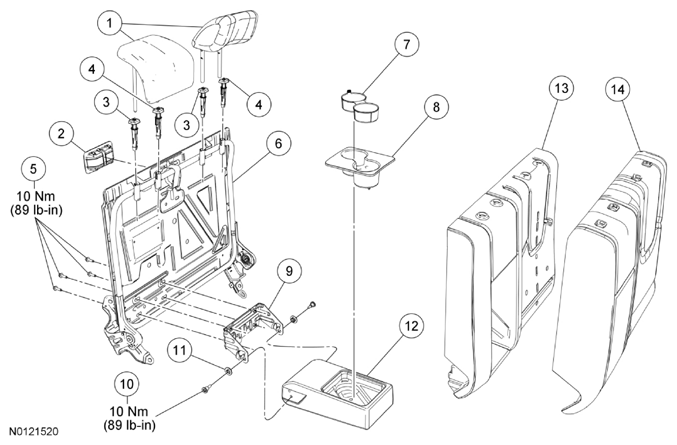

ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | 611A08 | Head restraints (1 each required) |
| 2 | 66716 | Striker cover |
| 3 | 610A18 | Head restraint guide sleeves (without button) (2 required) |
| 4 | 610A16 | Head restraint guide sleeves (with button) (2 required) |
| 5 | - | Armrest bracket-to-backrest bolts (4 required) |
| 6 | 613A39 | Backrest frame |
| 7 | 047A74 | Rubber insert, armrest cup holder |
| 8 | 13562 | Armrest cup holder |
| 9 | 67210 | Armrest bracket |
| 10 | W790023 | Armrest pivot bolt (2 required) |
| 11 | 613B44 | Armrest pivot bushing (2 required) |
| 12 | 67112 | Armrest assembly |
| 13 | 66801 | Backrest foam pad |
| 14 | 66601 | Backrest trim cover |
