Bypass Tube - 2.5L: Notes

WARNING: This page is about a different car, the 2011 Mercury Milan, 2011 Lincoln MKZ, and 2011 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

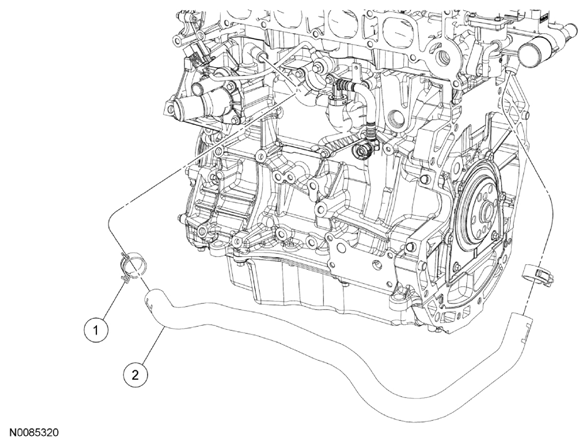

Fig 1: Identifying Bypass Tube Components - 2.5L
G07785609Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W525958 Hose clamp (2 required)
2 8548 Bypass tube
