Component Locations
WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, and 2004 Ford Excursion. However, it is still accessible from the selected car via links, so may be relevant.

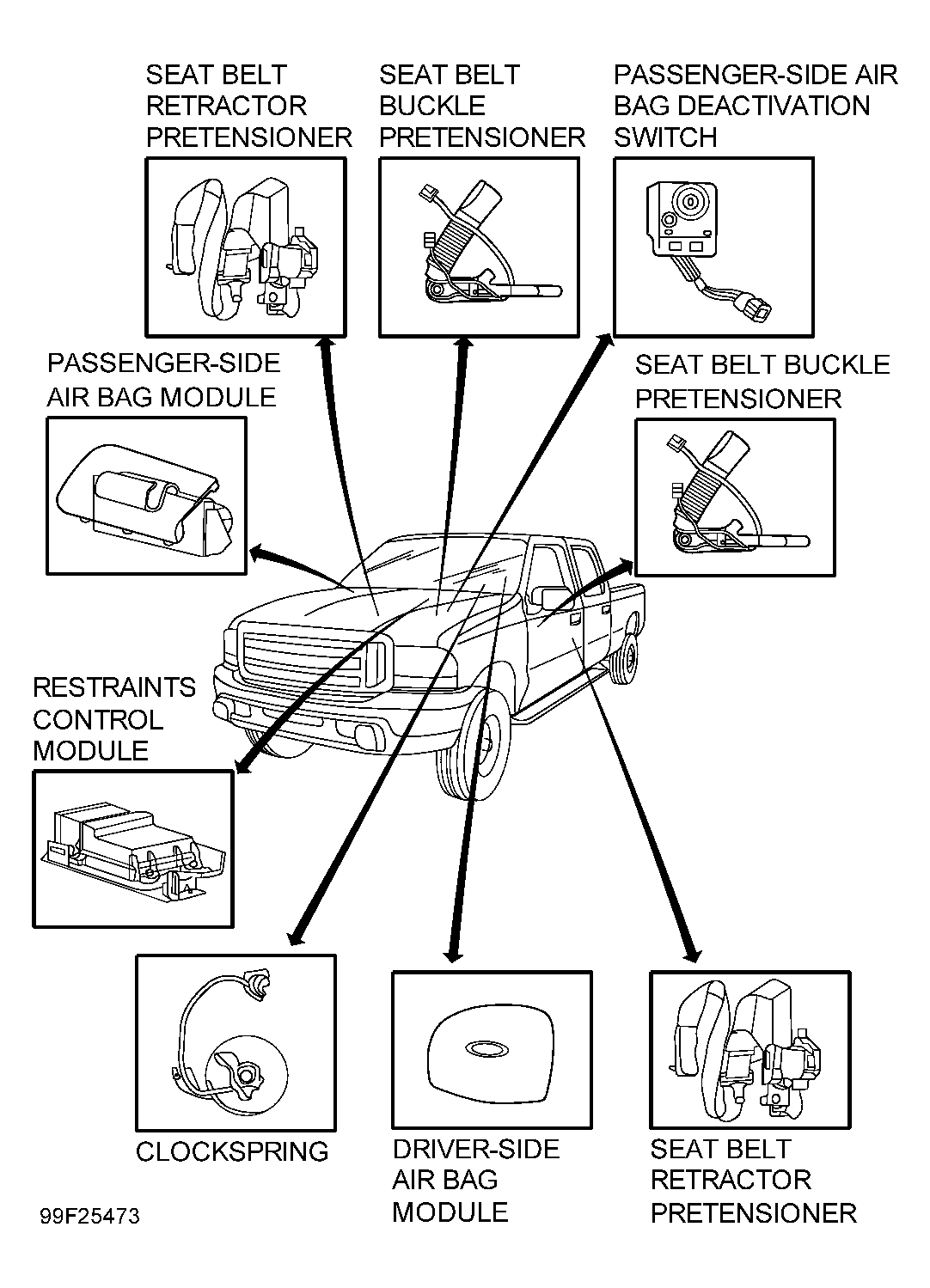

RESTRAINT SYSTEM COMPONENT LOCATIONS
| Component | (1)Location | ||
|---|---|---|---|
| Clockspring | On steering column, behind steering wheel | ||
| Driver-side air bag module | Center of steering wheel | ||
| Restraints control module | On tunnel, below center of instrument panel | ||
| Passenger-side air bag module | Right side of instrument panel, above glove box | ||
| Passenger-Side Air Bag Deactivation (PAD) switch | In instrument panel, on right-side of climate controls | ||
| Seat belt pretensioners | Front seat belt retractor or seat belt buckle | ||
|
|||
