Powertrain Control Module (PCM): Notes

WARNING: This page is about a different car, the 2011 Mercury Milan and 2011 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

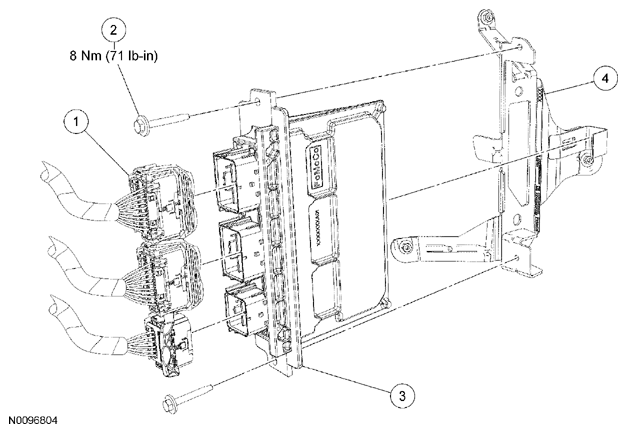

Fig 1: Powertrain Control Module Replacement Components With Torque Specifications
G07785795Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION

Item Part Number Description
1 14A464 PCM electrical connector (3 required)
2 W505428 PCM bolt (2 required)
3 12A650 PCM
4 12A659 PCM bracket
