Manifold Absolute Pressure (MAP) Sensor: Notes

WARNING: This page is about a different car, the 2011 Mercury Milan and 2011 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

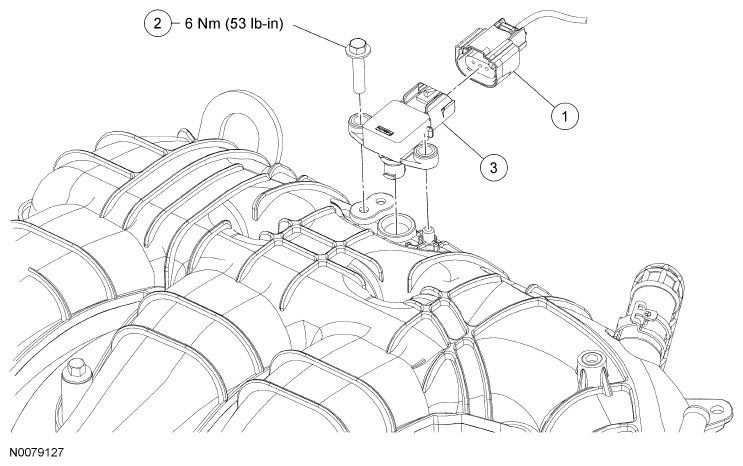

Fig 1: Manifold Absolute Pressure (MAP) Sensor Replacement Components With Torque Specifications
G06096786Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION

Item Part Number Description
1 14A464 Manifold Absolute Pressure (MAP) sensor electrical connector (part of 12C508)
2 W710652 MAP sensor bolt
3 9F479 MAP sensor
