Material Specifications
WARNING: This page is about a different car, the 2011 Mercury Milan and 2011 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL SPECIFICATIONS TABLE
| Item | Specification |
|---|---|
| Motorcraft® SAE 5W-20 Premium Synthetic Blend Motor Oil (US); Motorcraft® SAE 5W-20 Super Premium Motor Oil (Canada) XO-5W20-QSP (US); CXO-5W20-LSP12 (Canada) | WSS-M2C945-A |

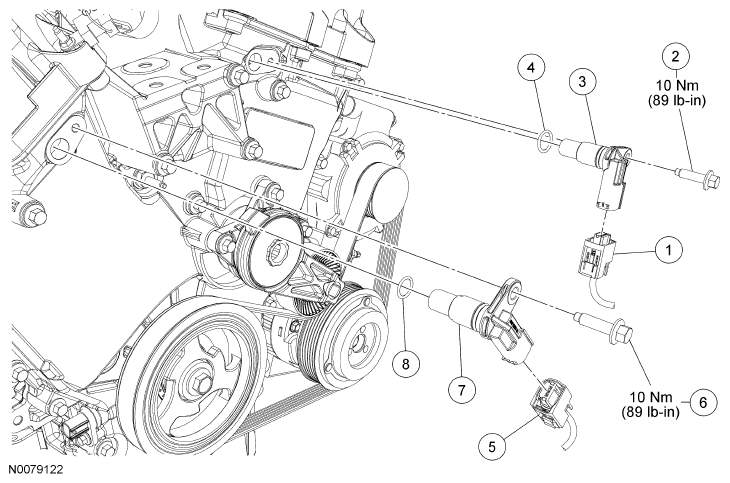

ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | 14A464 | LH Camshaft Position (CMP) sensor electrical connector (part of 12C508) |
| 2 | W500214 | LH CMP sensor bolt |
| 3 | 12K073 | LH CMP sensor |
| 4 | - | LH CMP sensor O-ring seal |
| 5 | 14A464 | RH CMP sensor electrical connector (part of 12C508) |
| 6 | W500214 | RH CMP sensor bolt |
| 7 | 12K073 | RH CMP sensor |
| 8 | - | RH CMP sensor O-ring seal |
- Disconnect the Camshaft Position (CMP) electrical connector.
- Remove the bolt and the CMP sensor.
- To install, tighten to 10 Nm (89 lb-in).
- To install, reverse the removal procedure.
NOTE:
Lubricate the CMP O-ring seal with clean engine oil.
