Removal and Installation

WARNING: This page is about a different car, the 2011 Mercury Milan, 2011 Lincoln MKZ, and 2011 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Do not use any fluid other than clean brake fluid meeting manufacturer's specification. Additionally, do not use brake fluid that has been previously drained. Following these instructions will help prevent system contamination, brake component damage and the risk of serious personal injury.
WARNING: Carefully read cautionary information on product label. For EMERGENCY MEDICAL INFORMATION seek medical advice. In the USA or Canada on Ford/Motorcraft products call: 1-800-959-3673. For additional information, consult the product Material Safety Data Sheet (MSDS) if available. Failure to follow these instructions may result in serious personal injury.
NOTE: Brake fluid is harmful to painted and plastic surfaces. If brake fluid is spilled onto a painted or plastic surface, immediately wash it with water.
  1. Position the engine coolant degas bottle aside.
    1. If equipped, detach the wiring harness retainer from the degas bottle.
    2. Remove the bolt.
      • To install, tighten to 9 Nm (80 lb-in).
    3. Remove the nut.
    • To install, tighten to 9 Nm (80 lb-in).

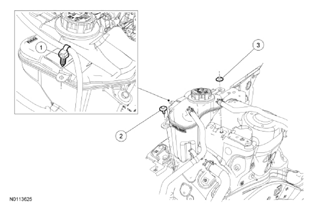

    Fig 1: Locating Engine Coolant Degas Bottle Bolt And Nut
    G07784413Courtesy of FORD MOTOR CO.
  2. Recover the refrigerant. For additional information, refer to CLIMATE CONTROL SYSTEM - GENERAL INFORMATION & DIAGNOSTICS -- FUSION, MILAN & MKZ (EXCEPT HYBRID) article.
  3. Remove the condenser-to-evaporator line and compressor manifold and tube bracket bolts.
    • To install, tighten to 6 Nm (53 lb-in).

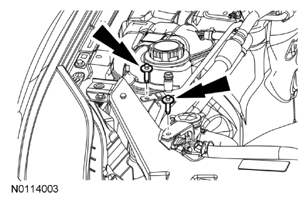

    Fig 2: Locating Compressor Manifold And Tube Bracket Bolts
    G07784414Courtesy of FORD MOTOR CO.
  4. Remove the condenser-to-evaporator line and compressor manifold and tube fitting nuts. Disconnect the fittings.
    • Discard the gasket seals.
    • To install, tighten to 15 Nm (133 lb-in).
    Fig 3: Locating Compressor Manifold And Tube Fitting Nuts
    G07784415Courtesy of FORD MOTOR CO.
  5. Disconnect the ABS module electrical connector.
  6. Disconnect the brake tube fittings.
    • To install:
      • tighten the front and rear brake tube fittings to 20 Nm (177 lb-in).
      • tighten the master cylinder brake tube fittings to 27 Nm (20 lb-ft).
  7. Remove the HCU bracket-to-HCU bolt.
    • To install, tighten to 9 Nm (80 lb-in).
  8. Remove the HCU.
  9. NOTE: Make sure the HCU and ABS module are clean and free of any brake fluid or foreign material before separating the components.
  10. To install, reverse the removal procedure.
  11. Evacuate, leak test and charge the refrigerant system. For additional information, refer to CLIMATE CONTROL SYSTEM - GENERAL INFORMATION & DIAGNOSTICS -- FUSION, MILAN & MKZ (EXCEPT HYBRID) article
