Remove the brake shoe adjusting screw spring and the brake adjuster screw assembly.

Adjust the brakes after installation. For additional information, refer to DISC & DRUM .
- Adjust the brakes after installation. For additional information, refer to DISC & DRUM .

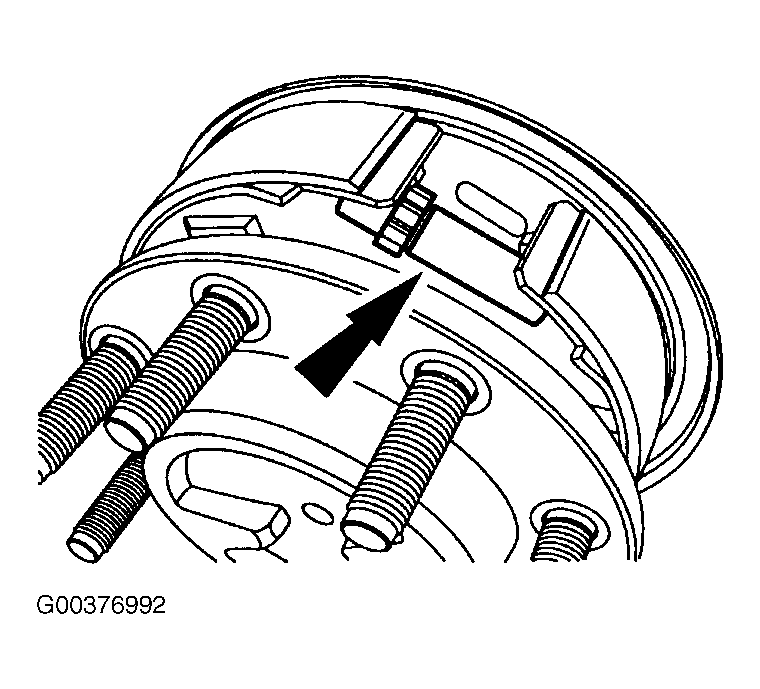

Fig 1: Identifying Brake Shoe Adjuster Spring
Courtesy of FORD MOTOR CO.

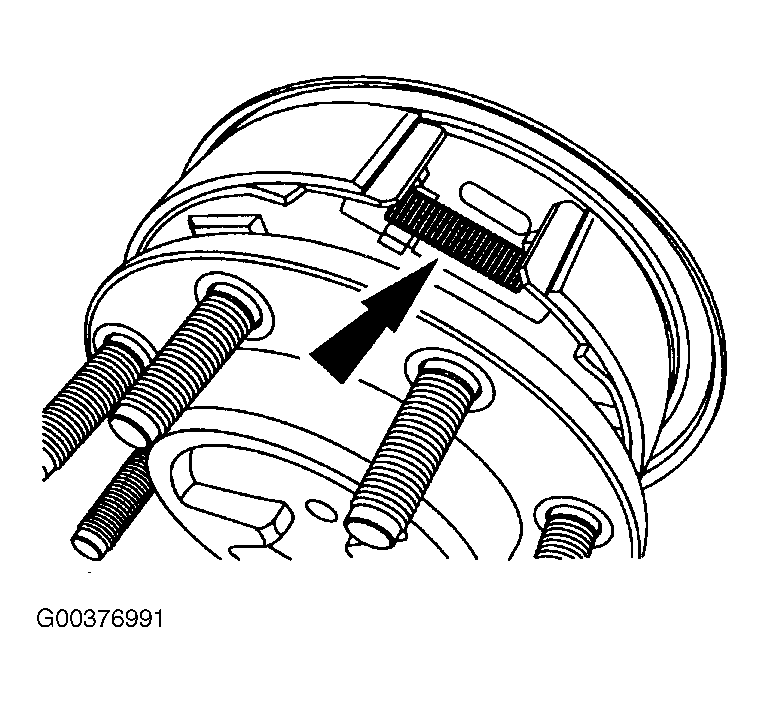

Fig 2: Identifying Brake Shoe Adjusting Screw
Courtesy of FORD MOTOR CO.
Using the special tool, press the wheel stud from its seat and discard.

Fig 3: Removing Wheel Stud
Courtesy of FORD MOTOR CO.
