2.5L Non-Hybrid
WARNING: This page is about a different car, the 2011 Mercury Milan, 2011 Lincoln MKZ, and 2011 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Automatic transmission shown in the illustration, manual transmission similar.

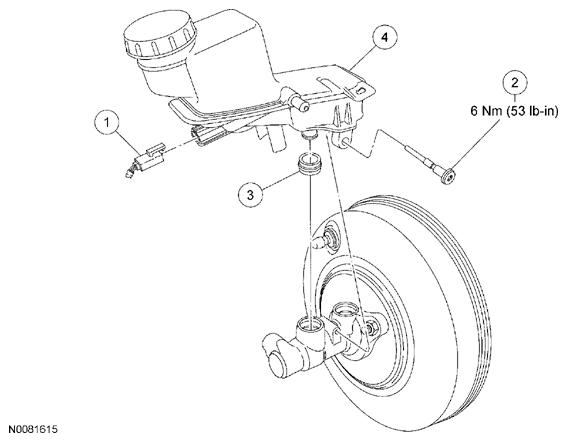

Fig 1: Exploded View Of Brake Fluid Reservoir Components With Torque Specifications (2.5L Non-Hybrid)
ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Brake fluid level warning switch electrical connector (part of 14290) |
| 2 | 2B176 | Brake fluid reservoir pin bolt |
| 3 | 2L074 | Brake fluid reservoir seal (2 required) |
| 4 | 2C246 | Brake fluid reservoir |
