Intermediate Shaft - Front Wheel Drive (FWD): Notes

WARNING: This page is about a different car, the 2011 Mercury Milan, 2011 Lincoln MKZ, and 2011 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

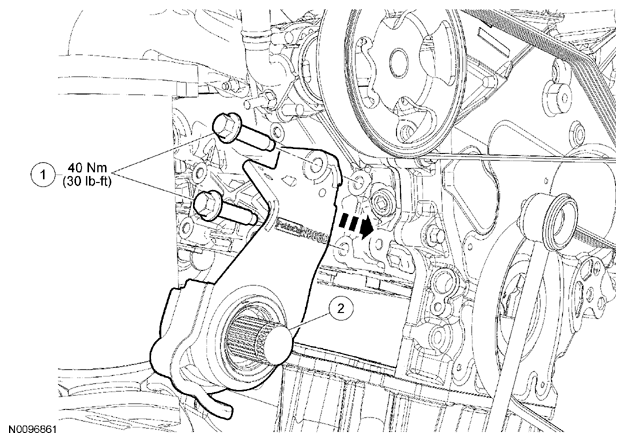

Fig 1: Front Wheel Drive (FWD) Intermediate Shaft Assembly Replacement Components With Torque Specifications

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION

Item	Part Number	Description
1	W500235	Halfshaft support bracket bolts (2 required)
2	3A329	Intermediate shaft assembly
