Removal and Installation

WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E550 Super Duty, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

Raise and support the vehicle.
Remove the nuts from both lower ends of the stabilizer bar links and remove the washers.
- Discard the nuts.

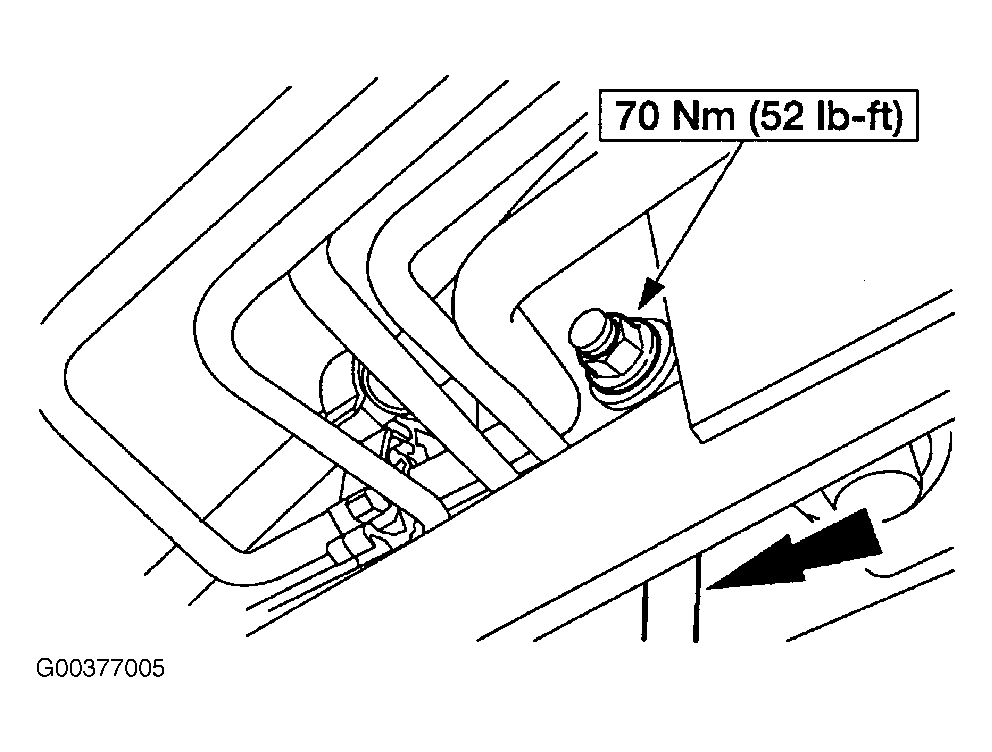

  Fig 1: Identifying Stabilizer Bar-To-Link Nut
  Courtesy of FORD MOTOR CO.
Remove the nuts and washers from both upper ends of the stabilizer bar links and remove the links.
- Discard the nuts.

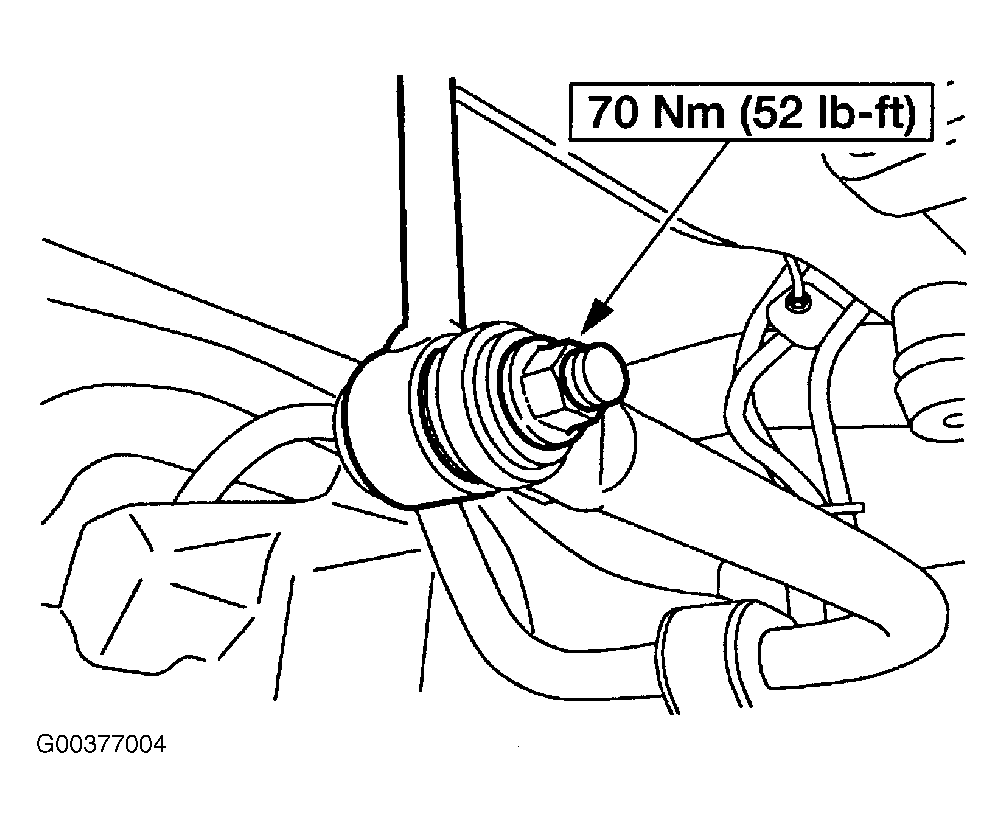

  Fig 2: Identifying Stabilizer Bar Link-To-Frame Nut
  Courtesy of FORD MOTOR CO.
Remove the bolts from both stabilizer bar retainer-to-axle brackets and remove the stabilizer bar.
- Discard the bolts.
- Remove the stabilizer bar bushings if necessary.

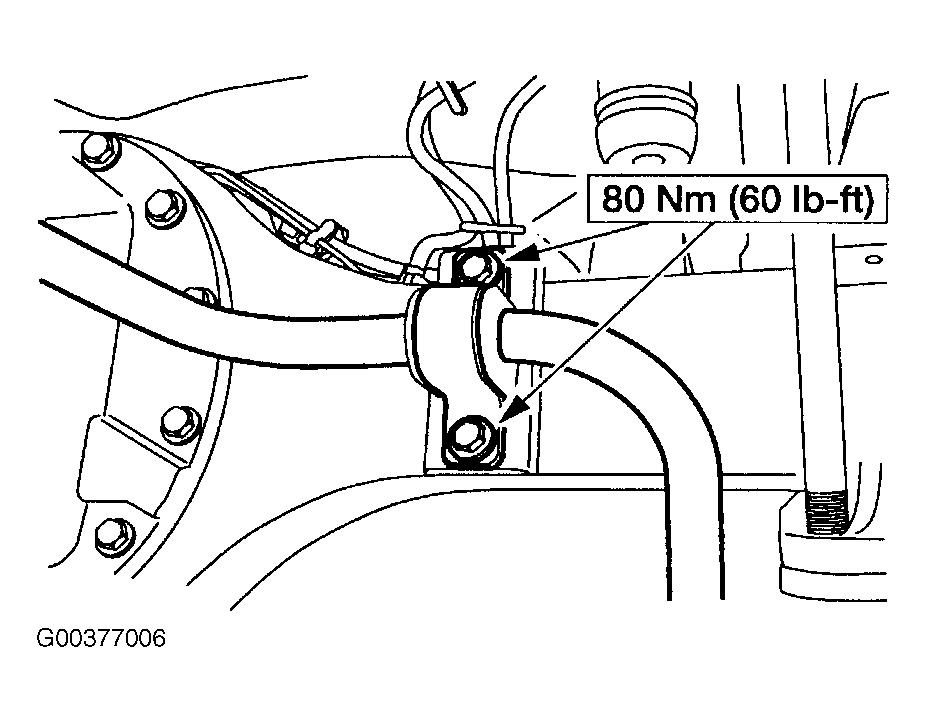

  Fig 3: Identifying Stabilizer Bar Bracket Bolt
  Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
