Instrument Panel Cluster (IPC): Hybrid
WARNING: This page is about a different car, the 2011 Mercury Milan, 2011 Lincoln MKZ, and 2011 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

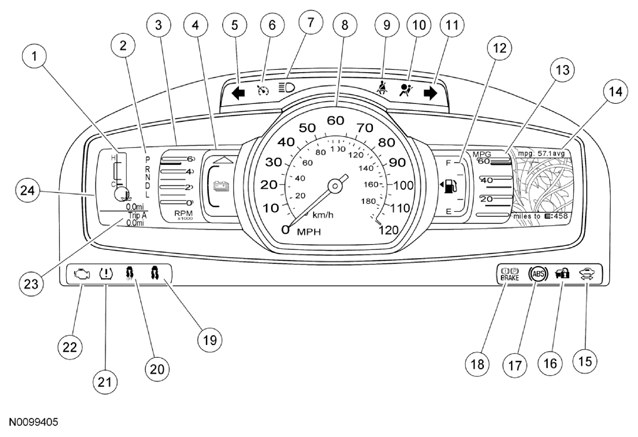

Fusion Hybrid enlighten display shown in the illustration, MKZ Hybrid and other hybrid displays similar.
ITEM DESCRIPTION TABLE (HYBRID)
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Engine coolant temperature gauge |
| 2 | - | PRNDL display |
| 3 | - | Tachometer/EV gauge |
| 4 | - | High voltage battery indicator |
| 5 | - | LH turn indicator |
| 6 | - | Cruise control engaged indicator |
| 7 | - | High beam indicator |
| 8 | - | Speedometer |
| 9 | - | Safety belt warning indicator |
| 10 | - | Air bag warning indicator |
| 11 | - | RH turn indicator |
| 12 | - | Fuel gauge |
| 13 | - | Fuel efficiency gauge |
| 14 | - | Efficiency information display |
| 15 | - | Ready to drive indicator |
| 16 | - | Anti-theft indicator |
| 17 | - | ABS warning indicator |
| 18 | - | Brake warning indicator |
| 19 | - | Traction control indicator |
| 20 | - | Traction control disable indicator |
| 21 | - | TPMS warning indicator |
| 22 | - | MIL |
| 23 | - | Odometer display |
