Luggage Compartment Lid Mounted

WARNING: This page is about a different car, the 2011 Mercury Milan, 2011 Lincoln MKZ, and 2011 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

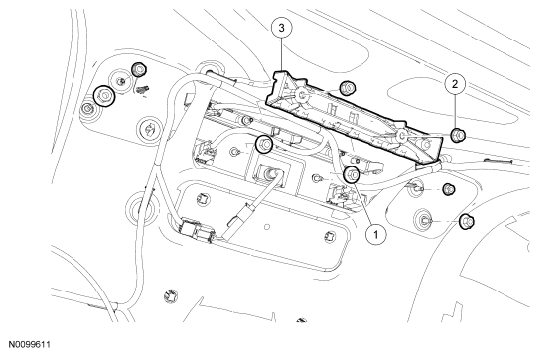

Fig 1: Identifying High Mounted Stoplamp Components - Luggage Compartment Lid Mounted (1 Of 2)
G06257467Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION

Item Part Number Description
1 W709764 Luggage compartment lid moulding nuts (4 required)
2 W704141 High mounted stoplamp nuts (4 required)
3 13A417 High mounted stoplamp bracket
