PINPOINT TEST Z: DTCs B00D5:11, B00D5:12 AND B00D5:13

WARNING: This page is about a different car, the 2011 Mercury Milan, 2011 Lincoln MKZ, and 2011 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Use the correct probe adapter(s) from the Flex Probe Kit when taking measurements. Failure to use the correct probe adapter(s) may damage the connector.
Most faults are due to connector and/or wiring concerns. Carry out a thorough inspection and verification before proceeding with the pinpoint test.

NOTE: Supplemental Restraint System (SRS) components should only be disconnected or reconnected when instructed to do so within a pinpoint test step. Failure to follow this instruction may result in incorrect diagnosis of the SRS.

NOTE: Always make sure the correct SRS component is being installed. Parts released for other vehicles may not be compatible even if they appear physically similar. Check the part number listed in the Ford Catalog Advantage™ to make sure the correct component is being installed. If an incorrect SRS component is installed, DTCs may set.

NOTE: The SRS must be fully operational and free of faults before releasing the vehicle to the customer.

Z1 RETRIEVE RCM DTCs
- Ignition ON.
- Enter the following diagnostic mode on the scan tool: Self Test - RCM.
- Was DTC B00D5:11, B00D5:12 or B00D5:13 retrieved on-demand during self-test?
- Yes : This fault cannot be cleared until it is corrected and the DTC is no longer retrieved on-demand during self-test. For DTC B00D5:11 or B00D5:13, GO to Z2 .
  For DTC B00D5:12, GO to Z7.
- No : This is an intermittent fault when present as a CMDTC only. GO to Z10.
Z2 CHECK THE PAD INDICATOR CIRCUIT FOR A SHORT TO GROUND
- Ignition OFF.
  WARNING: Turn the ignition OFF and wait one minute to deplete the backup power supply. Failure to follow this instruction may result in serious personal injury or death in the event of an accidental deployment.
- Disconnect: PAD Indicator C2286 (Fusion and Milan).
- Disconnect: FCIM C2402 (MKZ).
- For Fusion or Milan, measure the resistance between PAD indicator C2286-1, circuit CR116 (GN/WH), harness side and ground.

  Fig 1: Measuring Resistance Between Pad Indicator C2286-1, Circuit CR116 (GN/WH), Harness Side And Ground
  Courtesy of FORD MOTOR CO.
- For MKZ, measure the resistance between Front Controls Interface Module (FCIM) C2402-10, circuit CR116 (GN/WH), harness side and ground.

  Fig 2: Measuring Resistance Between Front Controls Interface Module (FCIM) C2402-10, Circuit CR116 (GN/WH), Harness Side And Ground
  Courtesy of FORD MOTOR CO.
- Is the resistance greater than 10,000 ohms?
- Yes : GO to Z4.
- No : GO to Z3 .
Z3 CHECK THE RCM FOR LOW RESISTANCE
- Depower the SRS. Refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING in this service information.
- Disconnect: RCM C310A and C310B.
- Measure the resistance between RCM C310a pin 22, component side and ground.

  Fig 3: Measuring Resistance Between RCM C310A Pin 22, Component Side And Ground
  Courtesy of FORD MOTOR CO.
- Is the resistance greater than 10,000 ohms?
- Yes : REPAIR circuit CR116 (GN/WH). Refer to SYSTEM WIRING DIAGRAMS article for schematic and connector information. GO to Z11.
- No : GO to Z9.
Z4 CHECK THE PAD INDICATOR CIRCUIT FOR AN OPEN
- Depower the SRS. Refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING in this service information.
- Disconnect: RCM C310A and C310B.
- For Fusion or Milan, measure resistance between PAD indicator C2286-1, circuit CR116 (GN/WH), harness side and RCM C310A-22, circuit CR116 (GN/WH), harness side.

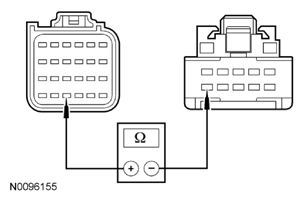

  Fig 4: Measuring Resistance Between Pad Indicator C2286-1, Circuit CR116 (GN/WH) And RCM C310A-22, Circuit CR116 (GN/WH), Harness Side
  Courtesy of FORD MOTOR CO.
- For MKZ, measure the resistance between FCIM C2402-10, circuit CR116 (GN/WH), harness side and RCM C310A-22, circuit CR116 (GN/WH), harness side.

  Fig 5: Measuring Resistance Between FCIM C2402-10, Circuit CR116 (GN/WH) And RCM C310A-22, Circuit CR116 (GN/WH), Harness Side
  Courtesy of FORD MOTOR CO.
- Is the resistance less than 0.5 ohm?
- Yes : GO to Z5 .
- No : REPAIR circuit CR116 (GN/WH). Refer to SYSTEM WIRING DIAGRAMS article for schematic and connector information. GO to Z11.
Z5 CHECK THE IGNITION CIRCUIT AT THE PAD INDICATOR FOR VOLTAGE
- Repower the SRS. Do not prove out the SRS at this time. Refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING in this service information.
- Ignition ON.
- For Fusion or Milan, measure the voltage between PAD indicator C2286-2, circuit CBP46 (WH/BU), harness side and ground.

  Fig 6: Measuring Voltage Between Pad Indicator C2286-2, Circuit CBP46 (WH/BU), Harness Side And Ground
  Courtesy of FORD MOTOR CO.
- For MKZ, measure the voltage between FCIM C2402-9, circuit CBP46 (WH/BU), harness side and ground.

  Fig 7: Measuring Voltage Between FCIM C2402-9, Circuit CBP46 (WH/BU), Harness Side And Ground
  Courtesy of FORD MOTOR CO.
- Is the voltage greater than 10 volts?
- Yes : GO to Z6 .
- No : VERIFY Smart Junction Box (SJB) fuse 46 (7.5A) is OK. If OK, REPAIR circuit CBP46 (WH/BU). Refer to SYSTEM WIRING DIAGRAMS article for schematic and connector information. If not OK, REFER to the SYSTEM WIRING DIAGRAMS article to identify the possible causes of the circuit short. GO to Z11.
Z6 CHECK THE PAD INDICATOR
- Ignition OFF.
- Depower the SRS. Refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING in this service information.
- Connect: PAD Indicator C2286 (Fusion and Milan).
- Connect: FCIM C2402 (MKZ).
- Connect a fused jumper wire between RCM C310A-22, circuit CR116 (GN/WH), harness side and ground.

  Fig 8: Connecting Fused Jumper Wire Between RCM C310A-22, Circuit CR116 (GN/WH), Harness Side And Ground
  Courtesy of FORD MOTOR CO.
- Ignition ON.
- Connect the battery ground cable. Refer to BATTERY, MOUNTING & CABLES -- FUSION, MILAN & MKZ .
- Does the PAD indicator illuminate?
- Yes : GO to Z9.
- No : For Fusion or Milan, INSTALL a new PAD indicator. REFER to PASSENGER AIR BAG DEACTIVATION (PAD) INDICATOR in this service information. GO to Z11.
  For MKZ, INSTALL a new FCIM. REFER to Installation and Removal procedure in INFORMATION & ENTERTAINMENT SYSTEMS -- FUSION, MILAN & MKZ . GO to Z11.
Z7 CHECK THE PAD INDICATOR CIRCUIT FOR A SHORT TO VOLTAGE
- Ignition OFF.
- Depower the SRS. Refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING in this service information.
- Disconnect: RCM C310A and C310B.
- Disconnect: PAD Indicator C2286 (Fusion and Milan).
- Disconnect: FCIM C2402 (MKZ).
- Repower the SRS. Do not prove out the SRS at this time. Refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING in this service information.
- Ignition ON.
- For Fusion or Milan, measure the voltage between PAD indicator C2286-1, circuit CR116 (GN/WH), harness side and ground.

  Fig 9: Measuring Voltage Between Pad Indicator C2286-1, Circuit CR116 (GN/WH), Harness Side And Ground
  Courtesy of FORD MOTOR CO.
- For MKZ, measure the voltage between FCIM C2402-10, circuit CR116 (GN/WH), harness side and ground.

  Fig 10: Measuring Voltage Between FCIM C2402-10, Circuit CR116 (GN/WH), Harness Side And Ground
  Courtesy of FORD MOTOR CO.
- Is any voltage present?
- Yes : REPAIR circuit CR116 (GN/WH). Refer to SYSTEM WIRING DIAGRAMS article for schematic and connector information. GO to Z11.
- No : GO to Z8 .
Z8 CHECK THE RCM
NOTE: This pinpoint test step will attempt to change the fault reported by the RCM by inducing a different fault condition. If the fault reported changes, this indicates the RCM is functioning correctly and is not the source of the fault.
- Ignition OFF.
- Depower the SRS. Refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING in this service information.
- Connect: RCM C310A and C310B.
- Repower the SRS. Do not prove out the SRS at this time. Refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING in this service information.
- Ignition ON.
- Enter the following diagnostic mode on the scan tool: Self Test - RCM.
- DIAGNOSTIC TIP: When viewing DTCs with the PAD indicator disconnected, an open circuit fault would normally be retrieved.
- Did the on-demand DTC change from B00D5:12 to B00D5:13?
- Yes : For Fusion or Milan, INSTALL a new PAD indicator. REFER to PASSENGER AIR BAG DEACTIVATION (PAD) INDICATOR in this service information. GO to Z11.
  For MKZ, INSTALL a new FCIM. REFER to Installation and Removal procedure in INFORMATION & ENTERTAINMENT SYSTEMS -- FUSION, MILAN & MKZ article. GO to Z11.
- No : GO to Z9 .
Z9 CONFIRM THE RCM FAULT
NOTE: Make sure all restraint system components, sensor electrical connectors and the RCM electrical connectors are connected before carrying out the self-test. If not, DTCs will be recorded.
- Ignition OFF.
- Depower the SRS. Refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING in this service information.
- Prior to reconnecting any previously disconnected SRS component:
  - inspect connector(s) (including any in-line connectors) for pushed out, loose or spread terminals and loose or frayed wire connections at terminals.
  - inspect wire harness for any damage, pinched, cut or pierced wires.
  - inspect C310A and C310B Connector Position Assurance (CPA) lever/lock for correct operation. Refer to RESTRAINTS CONTROL MODULE (RCM) in this service information.
  - repair any concerns found. Refer to SYSTEM WIRING DIAGRAMS article for schematic and connector information.
- Connect: PAD Indicator C2286 (Fusion and Milan) (if previously disconnected).
- Connect: FCIM C2402 (MKZ) (if previously disconnected).
- Connect: RCM C310A and C310B (if previously disconnected).
- Repower the SRS. Do not prove out the SRS at this time. Refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING in this service information.
- Ignition ON.
- Enter the following diagnostic mode on the scan tool: Self Test - RCM.
- Was the original DTC retrieved on-demand during self-test?
- Yes : INSTALL a new RCM. REFER to RESTRAINTS CONTROL MODULE (RCM) in this service information. GO to Z11.
- No : In the process of diagnosing the fault, the fault condition has become intermittent. Do not install any new SRS components at this time. SRS components should only be installed when directed to do so in the pinpoint test . GO to Z10 .
Z10 CHECK FOR AN INTERMITTENT FAULT
- Ignition OFF.
- Depower the SRS. Refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING in this service information.
- Disconnect the PAD indicator C2286 (Fusion and Milan) or FCIM C2402 (MKZ):
  - inspect connector(s) (including any in-line connectors) for corrosion, loose or spread terminals and loose or frayed wire connections at terminals.
  - inspect wire harness for any damage, pinched, cut or pierced wires.
  - repair any concerns found. Refer to SYSTEM WIRING DIAGRAMS article for schematic and connector information.
- Connect: All Previously Disconnected Component(s)/Connector(s).
- Repower the SRS. Do not prove out the SRS at this time. Refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING in this service information.
- Ignition ON.
- Enter the following diagnostic mode on the scan tool: Self Test - RCM.
- Was DTC B00D5:11, B00D5:12 or B00D5:13 retrieved on-demand during self-test?
- Yes : This fault cannot be cleared until it is corrected and the DTC is no longer retrieved on-demand during self-test. For DTC B00D5:11 or B00D5:13, GO to Z2.
  For DTC B00D5:12, GO to Z7.
- No : CHECK for causes of intermittent open, short to ground or short to voltage on circuit CR116 (GN/WH). ATTEMPT to recreate the hard fault by flexing the wire harness and cycling the ignition frequently. ACTIVATE other systems in the same wire harness. Do not install any new SRS components at this time. SRS components should only be installed when directed to do so in the pinpoint test . GO to Z11 .
Z11 CHECK FOR ADDITIONAL SRS DTCs
- Ignition OFF.
  WARNING: Turn the ignition OFF and wait one minute to deplete the backup power supply. Failure to follow this instruction may result in serious personal injury or death in the event of an accidental deployment.
- Reconnect all SRS components (if previously disconnected).
- If previously directed to depower the SRS, repower the SRS. Do not prove out the SRS at this time. Refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING in this service information.
- Ignition ON.
- Enter the following diagnostic mode on the scan tool: Self Test - Restraints.
  NOTE: When selecting Restraints from the Self Test menu, DTCs will be retrieved from the RCM and Occupant Classification System Module (OCSM).
- Are any RCM and/or OCSM retrieved on-demand during self-test?
- Yes : Do not clear any DTCs until all DTCs have been resolved. GO to the DTC TABLES in this service information for pinpoint test direction.
- No : CLEAR all RCM and OCSM CMDTCs. PROVE OUT the SRS. Repair is complete. RETURN the vehicle to the customer.
