Material Specifications
WARNING: This page is about a different car, the 2011 Mercury Milan, 2011 Lincoln MKZ, and 2011 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL SPECIFICATIONS TABLE
| Item | Specification |
|---|---|
| Premium Long-Life Grease XG-1-C or XG-1-K (US); CXG-1-C (Canada) |
ESA-M1C75-B |
NOTE:

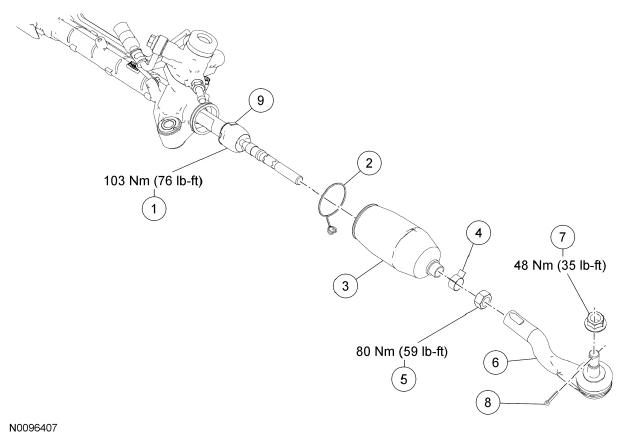

Hydraulic Power Assist Steering (HPAS) shown in the illustration, Electronic Power Assist Steering (EPAS) similar.
ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | 3280 | Hydraulic Power Assist Steering (HPAS) inner tie-rod end (also part of 3332B service kit) |
| 1 | - | Electronic Power Assist Steering (EPAS) inner tie-rod end (part of 3280 service kit) |
| 2 | 3K745 | HPAS inner bellows boot clamp (also part of 3332B service kit) |
| 2 | - | EPAS inner bellows boot clamp (part of 3280 service kit) |
| 3 | 3K661 | HPAS bellows boot (also part of 3332B service kit) |
| 3 | - | EPAS bellows boot (part of 3280 service kit) |
| 4 | 3C650 | HPAS outer bellows boot clamp (also part of 3332B service kit) |
| 4 | - | EPAS outer bellows boot clamp (part of 3280 service kit) |
| 5 | W713882 | Tie-rod jam nut (all) |
| 6 | 3A130 | Outer tie-rod end (all) |
| 7 | W302124 | Outer tie-rod end nut (all) |
| 8 | W302420 | Cotter pin (all) |
| 9 | - | Retaining washer (Hydraulic Power Assist Steering (HPAS) only) (part of 3280 and 3332B service kit) |
