Material Specifications

WARNING: This page is about a different car, the 2011 Mercury Milan, 2011 Lincoln MKZ, and 2011 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

MATERIAL SPECIFICATIONS TABLE

Item	Specification
MERCON® V Automatic Transmission Fluid XT-5-QM (or XT-5-QMC) (US); CXT-5-LM12 (Canada)	MERCON® V

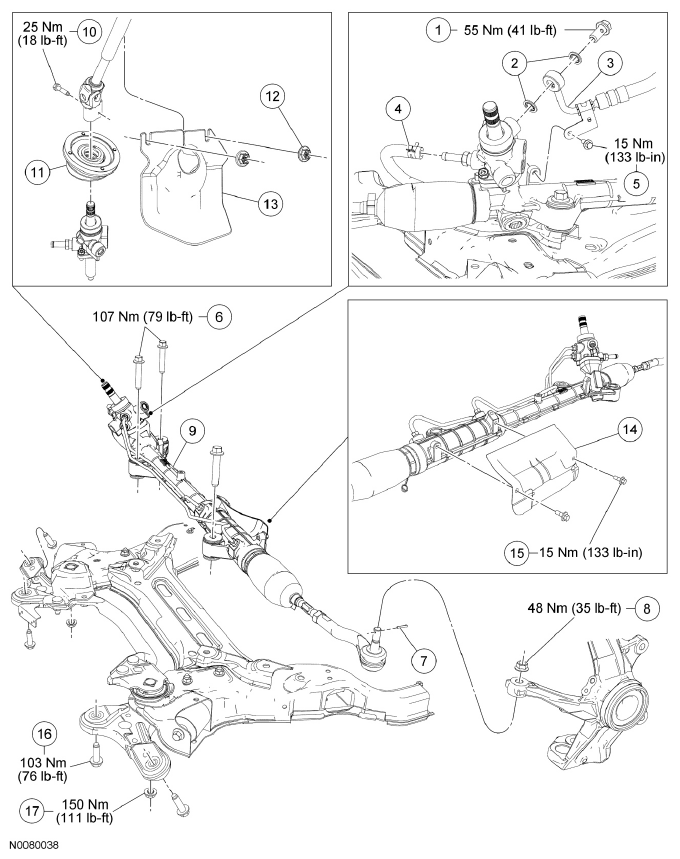

Fig 1: Steering Gear Replacement Components With Torque Specifications (3.5L Front Wheel Drive)

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION

Item	Part Number	Description
1	-	Pressure line-to-steering gear banjo bolt (part of 3A705 service kit)
2	-	Power steering pressure line seals (part of 3A705 service kit)
3	-	Power steering pressure line (part of 3A719 service kit)
4	3A713	Steering gear-to-fluid cooler return hose
5	712155	Pressure line bracket-to-steering gear bolt
6	3C497	Steering gear bolts (3 required)
7	99221	Cotter pin (2 required)
8	6E5C	Outer tie-rod end nut (2 required)
9	3504	Steering gear
10	3R827	Steering column shaft-to-steering gear bolt
11	3611B	Steering gear/dash seal
12	W704904	Lower steering column shaft joint cover nut (2 required)
13	3611A	Lower steering column shaft joint cover
14	391727	Steering gear heat shield
15	3530B	Steering gear heat shield bolt (2 required)
16	3C496	Subframe bolt (4 required)
17	W520416	Subframe nut (2 required)
