Material Specifications
WARNING: This page is about a different car, the 2011 Mercury Milan, 2011 Lincoln MKZ, and 2011 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL SPECIFICATIONS TABLE
| Item | Specification |
|---|---|
| MERCON® V Automatic Transmission Fluid XT-5-QM (or XT-5-QMC) (US); CXT-5-LM12 (Canada) |
MERCON® V |

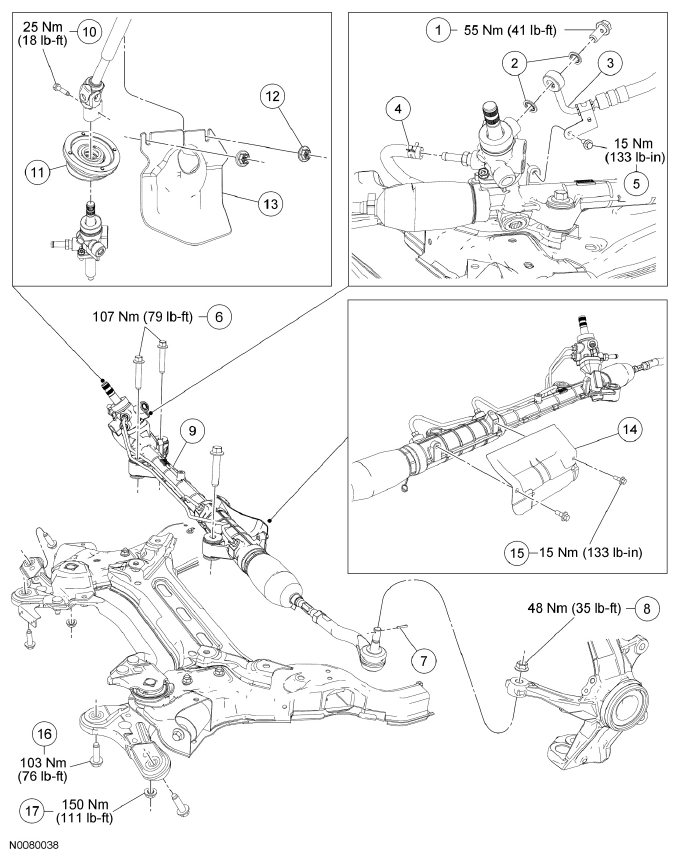

ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Pressure line-to-steering gear banjo bolt (part of 3A705 service kit) |
| 2 | - | Power steering pressure line seals (part of 3A705 service kit) |
| 3 | - | Power steering pressure line (part of 3A719 service kit) |
| 4 | 3A713 | Steering gear-to-fluid cooler return hose |
| 5 | W712155 | Pressure line bracket-to-steering gear bolt |
| 6 | 3C497 | Steering gear bolts (3 required) |
| 7 | 99221 | Cotter pin (2 required) |
| 8 | 6E5C | Outer tie-rod end nut (2 required) |
| 9 | 3504 | Steering gear |
| 10 | 3R827 | Steering column shaft-to-steering gear bolt |
| 11 | 3611B | Steering gear/dash seal |
| 12 | W704904 | Lower steering column shaft joint cover nut (2 required) |
| 13 | 3611A | Lower steering column shaft joint cover |
| 14 | 391727 | Steering gear heat shield |
| 15 | 3530B | Steering gear heat shield bolt (2 required) |
| 16 | 3C496 | Subframe bolt (4 required) |
| 17 | W520416 | Subframe nut (2 required) |
