Steering Gear - 3.5L All Wheel Drive (AWD): Installation

WARNING: This page is about a different car, the 2011 Mercury Milan, 2011 Lincoln MKZ, and 2011 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
  1. From the LH side of the vehicle, install the steering gear.
  2. Install the 3 steering gear bolts.
    • Tighten to 107 Nm (79 lb-ft).
  3. Release the clamp and connect the steering gear-to-fluid cooler return hose.
  4. Using a suitable jack, raise the rear of the front subframe.
  5. Install the subframe support bracket, 4 rear subframe bolts and 2 rear subframe nuts.
    • To install, tighten the bolts and nuts in 2 stages.
      • Stage 1: Tighten the nuts to 150 Nm (111 lb-ft).
      • Stage 2: Tighten the bolts to 103 Nm (76 lb-ft).
  6. Install the steering gear heat shield and the 2 bolts.
    • Tighten to 15 Nm (133 lb-in).
  7. NOTE: Always install new fasteners and gaskets. Clean flange faces prior to new gasket installation to make sure of proper sealing.
  8. Position the exhaust flexible pipe and install 2 new catalytic converter-to-exhaust flexible pipe nuts.
    • Tighten to 40 Nm (30 lb-ft).
  9. Install the 2 outer tie-rod end nuts.
    • Tighten to 48 Nm (35 lb-ft).
    • Install 2 new cotter pins.
  10. Install the LH and RH splash shield and the 6 pin-type retainers.
  11. Install the RH and LH fender splash shield and the 4 screws from each side.
  12. If equipped, install the underbody splash shield and bolts.
    • Tighten to 7 Nm (62 lb-in).
  13. Install the pressure line bracket-to-steering gear bolt.
    • Tighten to 15 Nm (133 lb-in).
  14. NOTE: New banjo bolts and new seals must be installed any time the power steering pressure line is disconnected from the power steering pump and/or the steering gear or a fluid leak may occur.
  15. Install the new pressure line-to-steering gear banjo bolt.
    • Install 2 new seals.
    • Tighten to 55 Nm (41 lb-ft).
  16. Connect the electrical connectors to the PCM.
    • Attach the wiring harness retainer to the PCM bracket.
  17. Install the battery tray and battery. For additional information, refer to BATTERY, MOUNTING & CABLES -- FUSION, MILAN & MKZ article.
  18. NOTE: The steering gear/dash seal must be fully seated in the steering gear valve tower groove before the retaining clips are fully engaged into the body. If the steering gear/dash seal is not seated to the steering gear valve tower groove and the clips are not fully engaged to the body, water and foreign material may enter the passenger compartment and damage the vehicle interior.
    Fig 1: Locating Steering Gear/Dash Seal
    G07780286Courtesy of FORD MOTOR CO.
  19. Applying hand force to the center of the seal, install the steering gear/dash seal onto the steering gear valve tower until the seal is fully seated in the valve tower groove.
  20. Install the steering gear/dash seal until the retaining clips are fully engaged into the body.

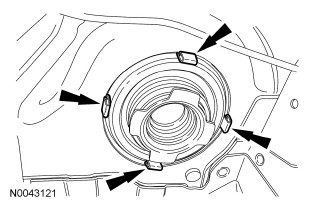

    Fig 2: Locating Steering Gear/Dash Seal Retaining Clips
    G07780287Courtesy of FORD MOTOR CO.
  21. NOTE: Do not allow the steering column to rotate while the steering column shaft is disconnected from the steering gear or damage to the clockspring may occur. If there is evidence that the steering column has rotated, the clockspring must be removed and recentered. For additional information, refer to SUPPLEMENTAL RESTRAINT SYSTEM -- FUSION, MILAN & MKZ article.
    NOTE: Make sure to correctly align the index marks when installing the steering gear-to-steering column shaft or unequal right-to-left turns may occur, causing tire contact with the body and/or clockspring damage.
  22. With the index marks properly aligned, connect the steering column shaft to the steering gear and install the new bolt.
    • Tighten to 25 Nm (18 lb-ft).

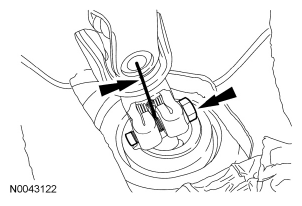

      Fig 3: Locating Index Mark, Steering Column Shaft And Mounting Bolt
      G07780288Courtesy of FORD MOTOR CO.
  23. Install the lower steering column shaft joint cover and the 2 nuts.
  24. Fill the power steering system. For additional information, refer to STEERING SYSTEM - HYDRAULIC POWER ASSIST STEERING (HPAS) article.
  25. Check and, if necessary, adjust the front toe. For additional information, refer to SUSPENSION SYSTEM - GENERAL INFORMATION article.
