Wheel Bearing and Wheel Hub: Notes
WARNING: This page is about a different car, the 2011 Mercury Milan, 2011 Lincoln MKZ, and 2011 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOL(S)
| Remover, Front Hub 205-D070 (D93P-1175-B) or equivalent |
|
| Installer, Halfshaft 204-161 (T97P-1175-A) |
|
| Ball Joint Separator 204-592 |
|
| Installer, Wheel Hub Bearing Cup 205-147 |
|
| Remover, Drive Pinion Bearing Cone 205-D002 (D79L-4621-A) or equivalent |
|
| Remover/Installer, Wheel Hub Cup 204-020 |
|
| Step Plate 205-117 |
|
| Installer, Axle Bearing Cup. 205-225 |
|
| Remover/Installer, Drive Pinion Oil Seal 205-440 |

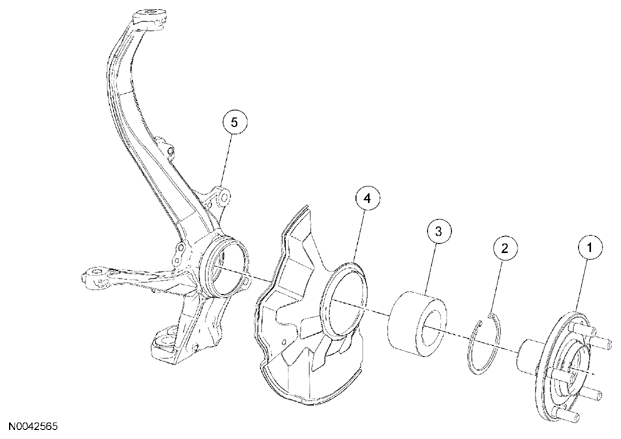

ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | 1104 | Wheel hub |
| 2 | 3B625 | Snap ring |
| 3 | 1215 | Wheel bearing |
| 4 | 2K005 | LH/2K004 RH Disc brake shield |
| 5 | 3K171 | LH/3K170 RH Wheel knuckle |
