Removal and Installation

WARNING: This page is about a different car, the 2002 Ford RV Cutaway, 2002 Ford Econoline, 2002 Ford E550 Super Duty, 2002 Ford E450 Super Duty, and 2002 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

Remove the wheel and tire assembly.
Support the rear axle with a suitable jack.
Remove the nut and bolt.
- Discard the nut.

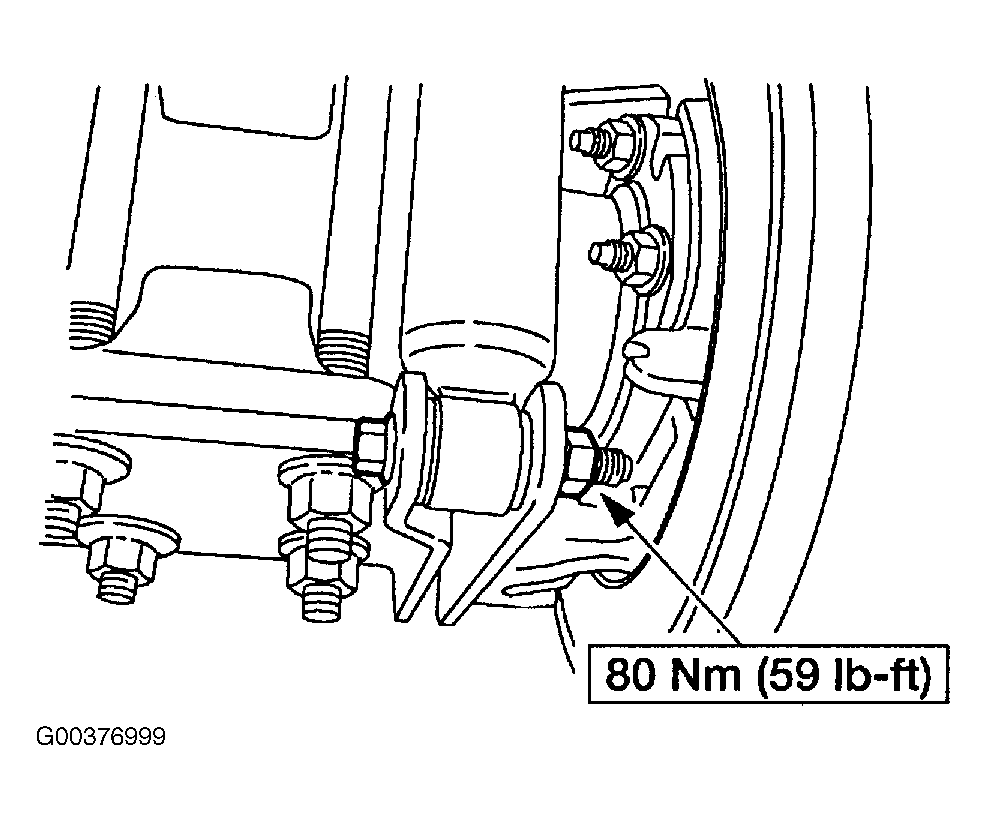

  Fig 1: Identifying Shock Absorber Lower Nut & Bolt
  Courtesy of FORD MOTOR CO.
Remove the nuts, spring plate and U-bolts.
- Discard the nuts and U-bolts.

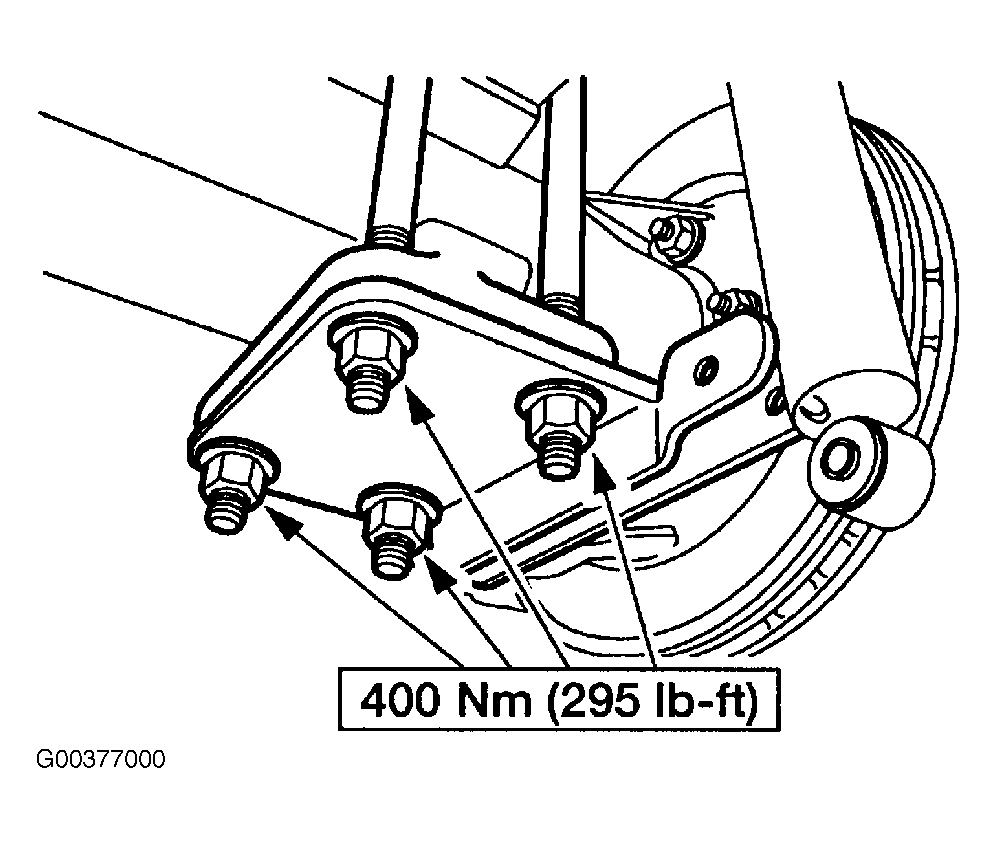

  Fig 2: Identifying U-Bolts & Nuts
  Courtesy of FORD MOTOR CO.
Remove the bolt, flag nut, and washers.
- Discard the flag nut.
- Remove the leaf spring and shackle.

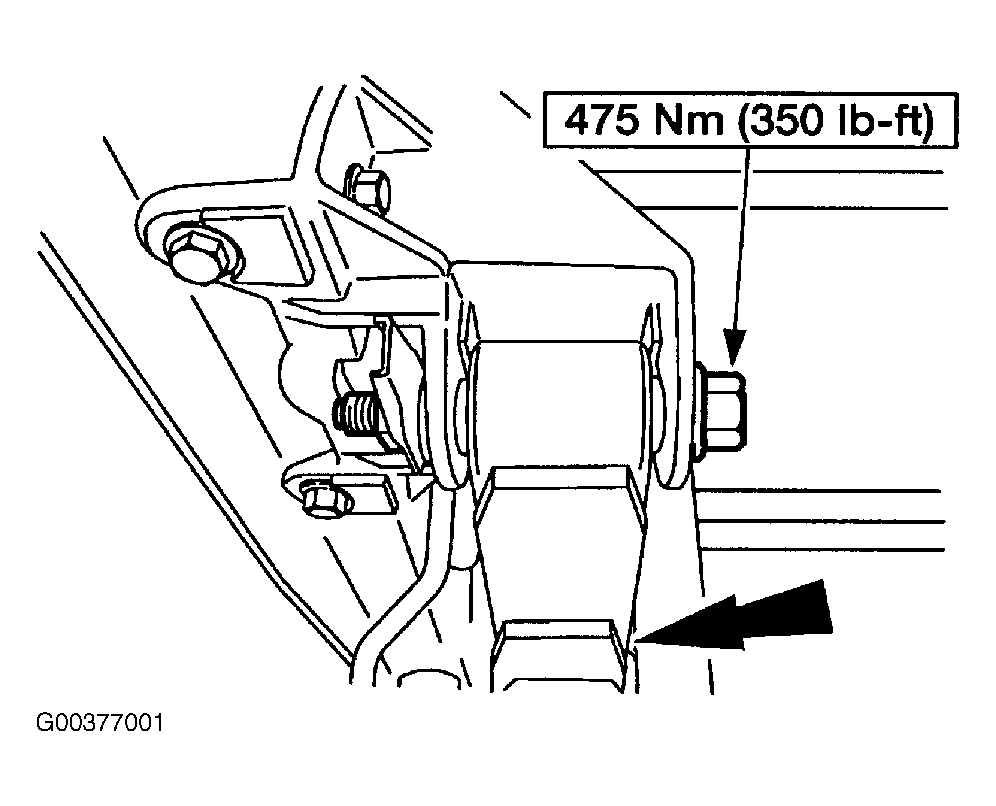

  Fig 3: Identifying Leaf Spring-To-Front Bracket Bolt
  Courtesy of FORD MOTOR CO.
Remove the bolt, flag nut, and washers.
- Discard the flag nut.

  Fig 4: Identifying Leaf Spring-To-Rear Bracket Bolt
  Courtesy of FORD MOTOR CO.
Remove the nut, bolt and washers from the rear spring shackle assembly, then remove the rear spring shackle.

Fig 5: Identifying Leaf Spring Shackle Bolt
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
