Stabilizer Bar and Link: Notes
WARNING: This page is about a different car, the 2011 Mercury Milan, 2011 Lincoln MKZ, and 2011 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Front Wheel Drive (FWD) shown in the illustration, All-Wheel Drive (AWD) similar.

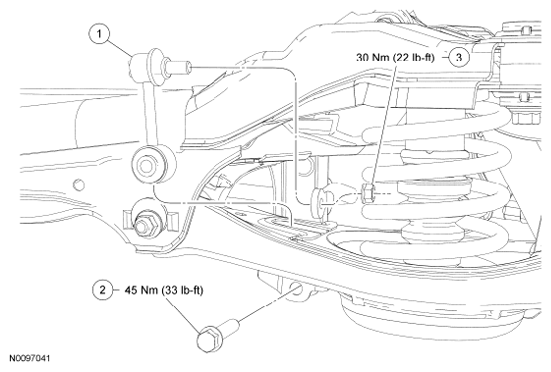

Fig 1: Exploded View Of Stabilizer Bar And Link Components With Torque Specifications (Front Wheel Drive)
ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | 5A486 | Stabilizer bar link |
| 2 | W302134 | Stabilizer bar link lower bolt |
| 3 | 3C494 | Stabilizer bar link upper nut |
NOTE:
Front Wheel Drive (FWD) shown in the illustration, All-Wheel Drive (AWD) similar.

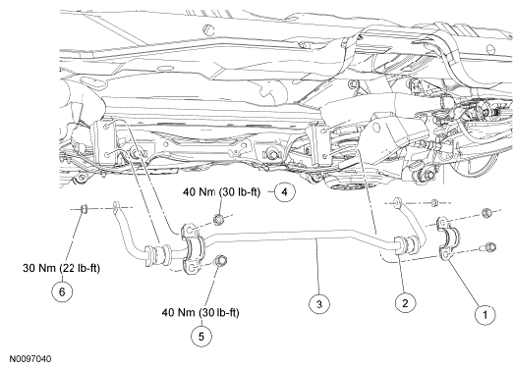

Fig 2: Exploded View Of Stabilizer Bar And Link Components With Torque Specifications (Front Wheel Drive)
ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | 5B498 | Stabilizer bar bracket (2 required) |
| 2 | 5493 | Stabilizer bar bushing (2 required) |
| 3 | 5A772 | Stabilizer bar |
| 4 | W302118 | Stabilizer bar bracket nut (2 required) |
| 5 | W302131 | Stabilizer bar bracket bolt (2 required) |
| 6 | 3C494 | Stabilizer bar link upper nut (2 required) |
