Lower Arm: Notes
WARNING: This page is about a different car, the 2011 Mercury Milan, 2011 Lincoln MKZ, and 2011 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

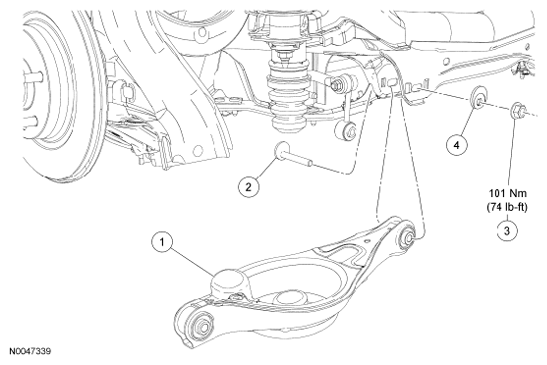

Front Wheel Drive (FWD) shown in the illustration, All-Wheel Drive (AWD) similar.
Courtesy of FORD MOTOR CO. ITEM DESCRIPTION
| Item |
Part Number |
Description |
| 1 |
5A649 |
Lower arm |
| 2 |
5K751 |
Cam bolt |
| 3 |
W520515 |
Cam adjuster nut |
| 4 |
6269 |
Cam adjuster |
