Power Steering Pump Belt: Installation

WARNING: This page is about a different car, the 2011 Lincoln MKZ and 2011 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the power steering belt on the crankshaft pulley.
    2. NOTE: After installation, make sure the belt is correctly seated on the crankshaft and power steering pulleys.

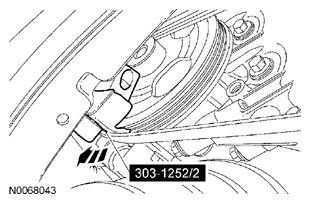

    Fig 1: Positioning Power Steering Belt Around Stretchy Belt Installer Tool And Power Steering Pulley
    G07785738Courtesy of FORD MOTOR CO.
  2. Position the power steering belt around the Stretchy Belt Installer Tool and the power steering pulley. Make sure the belt is engaged with the power steering pulley and rotate the crankshaft clockwise to install the power steering belt.
  3. Position the accessory drive belt on the crankshaft pulley.
    4. NOTE: After installation, make sure the accessory drive belt is correctly seated on all pulleys.
  4. Working from the top of the vehicle, rotate the accessory drive belt tensioner clockwise and install the accessory drive belt on the generator pulley.
  5. Install the RH splash shield and the 6 pin-type retainers.
  6. Position the RH fender splash shield and install the 4 screws.

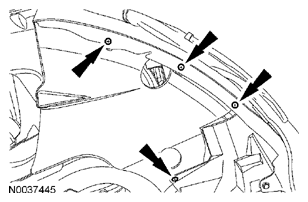

Fig 2: Locating RH Fender Splash Shield Mounting Screws
G07785739Courtesy of FORD MOTOR CO.
