Coolant Pump Belt: Installation

WARNING: This page is about a different car, the 2011 Mercury Milan and 2011 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the coolant pump belt on the coolant pump pulley and position it on the camshaft pulley.

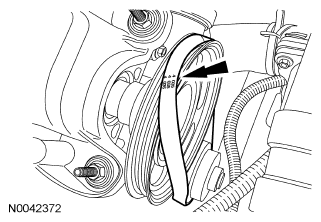

    Fig 1: Locating Coolant Pump Belt
    G06095898Courtesy of FORD MOTOR CO.
    2. NOTE: Do not use any screwdrivers, pliers or other metal objects that could cause damage to the belt or camshaft pulley while installing the belt.
  2. Rotate the crankshaft clockwise to seat the coolant pump belt on the camshaft pulley.
  3. Install the RH splash shield and the 6 pin-type retainers.
    Fig 2: Locating RH Splash Shield Pin-Type Retainers
    G06272546Courtesy of FORD MOTOR CO.
  4. Position the RH fender splash shield and install the 4 screws.
Fig 3: Locating RH Fender Splash Shield Mounting Screws
G06257214Courtesy of FORD MOTOR CO.
