Removal and Installation

WARNING: This page is about a different car, the 2004 Ford Ranger, 2003 Ford Ranger, and 2002 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the vehicle and install safety stands.
  2. Remove the wheel and tire assembly.
  3. Use the Hi-Lift Jack to support the rear axle (4001).

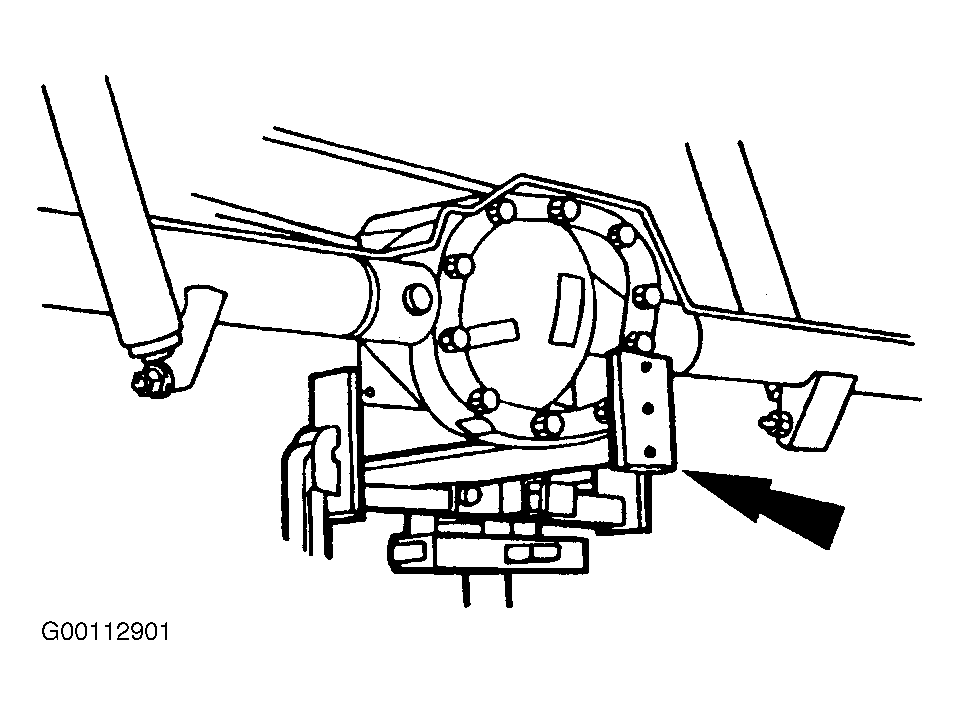

    Fig 1: Placing Hi-Lift Jack
    G00112901Courtesy of FORD MOTOR CO.
  4. Remove the nuts, U-bolts and spring plate. Carefully lower the rear axle and remove the rear spring spacer, if equipped.

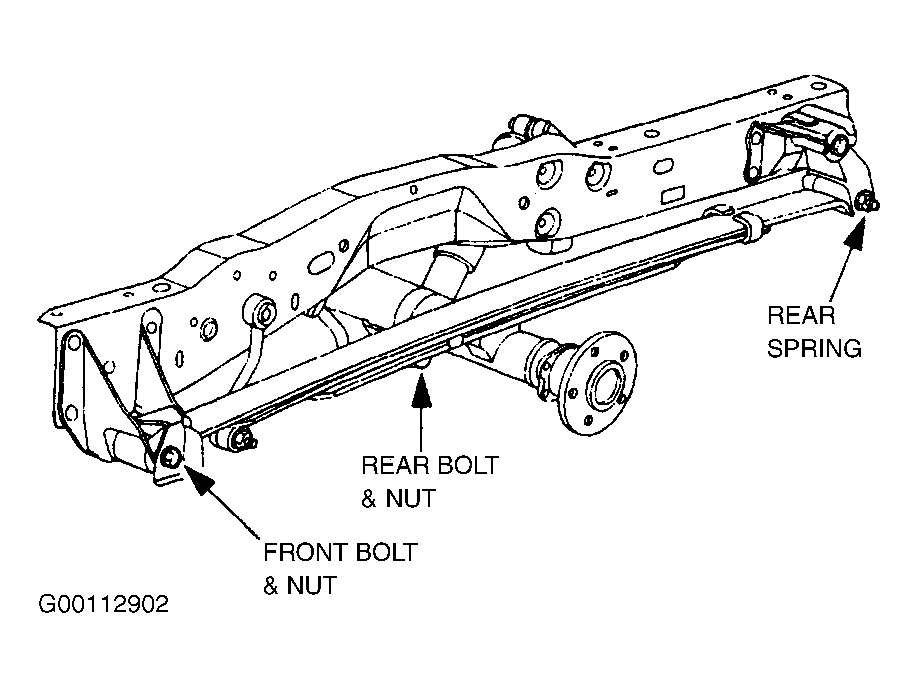

    Fig 2: Removing Leaf Spring
    G00112902Courtesy of FORD MOTOR CO.
  5. Remove the nuts, bolts and the spring (5560).
  6. To install, reverse the removal procedure.
