3.0L Front Wheel Drive (FWD) (View 1 of 3)

WARNING: This page is about a different car, the 2011 Mercury Milan, 2011 Lincoln MKZ, and 2011 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

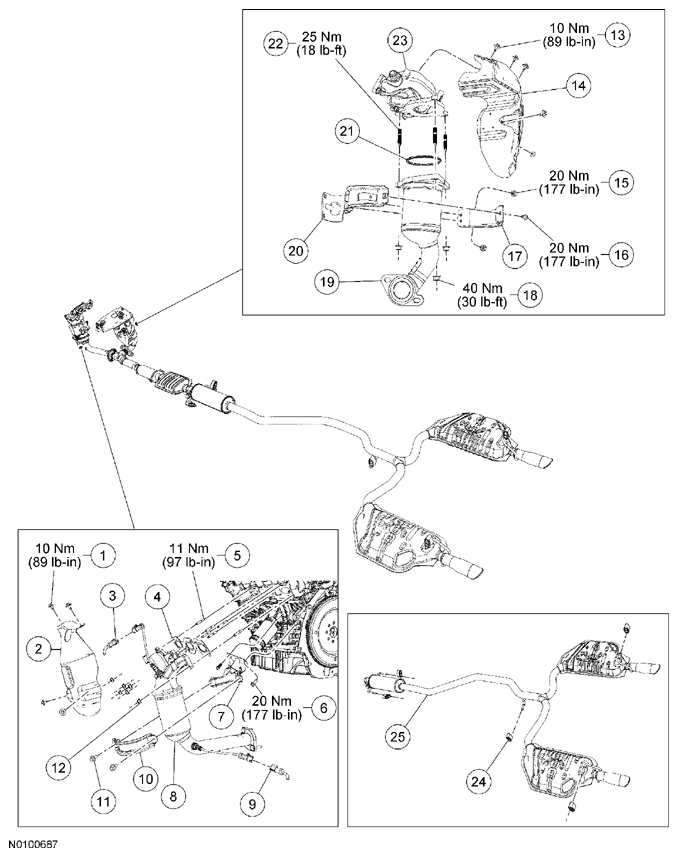

Fig 1: Exploded View Of Front Wheel Drive (FWD) Exhaust System Components With Torque Specifications - 3.0L (View 1 of 3)

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION

Item	Part Number	Description
1	W503921	LH catalytic converter manifold shield bolt (4 required)
2	5K282	LH catalytic converter manifold shield
3	14A464	Heated Oxygen Sensor (HO2S) electrical connector
4	9448	LH catalytic converter manifold gasket
5	W701732	LH catalytic converter manifold stud (6 required)
6	W711132	LH catalytic converter manifold bracket bolt (2 required)
7	5K223	LH catalytic converter manifold bracket
8	5G232	LH catalytic converter manifold
9	14A464	Catalyst Monitor Sensor (CMS) electrical connector
10	5K292	LH catalytic converter manifold shield bracket
11	W500021	LH catalytic converter manifold shield bracket bolt (2 required)
12	W701706	LH catalytic converter manifold nut (6 required)
13	W503921	RH catalytic converter manifold shield bolt (5 required)
14	5K282	RH catalytic converter manifold shield
15	W701706	RH catalytic converter manifold shield bracket nut (2 required)
16	W500021	RH catalytic converter manifold shield bracket bolt
17	5K281	RH catalytic converter manifold shield bracket
18	W520414	RH catalytic converter-to-manifold nut (3 required)
19	5G236	RH catalytic converter manifold
20	5K291	RH catalytic converter manifold bracket
21	5F263	RH catalytic converter manifold gasket
22	W711133	RH catalytic converter-to-manifold stud (3 required)
23	9428	RH exhaust manifold
24	5F262	Muffler and tail pipe isolator (5 required)
25	5G213	Muffler and tail pipe
