Rear Ride Height Measurement
WARNING: This page is about a different car, the 2011 Mercury Milan, 2011 Lincoln MKZ, and 2011 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

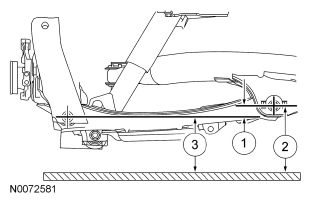

ITEM DESCRIPTION
| Item | Description |
|---|---|
| 1 | Ride height = 2 - 3 |
| 2 | Measurement 2 |
| 3 | Measurement 3 |
NOTE:
Make sure that the vehicle is positioned on a flat, level surface and the tires are inflated to the correct pressure. Vehicle should have a full tank of fuel.
- Measure the distance between the flat level surface and center of the lower arm inboard cam bolt (measurement 2).
- Measure the distance between the flat level surface and the center of the lower arm outboard bolt (measurement 3).
- Subtract measurement 3 from measurement 2 to obtain the rear ride height.
