Gearshift Cable Adjustment

WARNING: This page is about a different car, the 2011 Mercury Milan and 2011 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

Set the parking brake.
Place the gearshift in neutral.
Remove the gearshift knob and the floor console finish panel.

NOTE: Console removed for clarity.

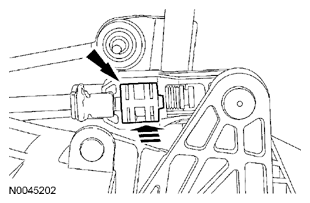

Fig 1: Disengaging Safety Lock

Courtesy of FORD MOTOR CO.

Disengage the safety lock by sliding it away from the shifter ball stud.

NOTE: If the cable lock is difficult to slide out, disconnect the shift cable from the stud, push the lock from the rear and reattach the shift cable to the ball stud.

Fig 2: Disengaging Cable Lock

Courtesy of FORD MOTOR CO.

Disengage the cable lock by sliding it out from the shift cable end fitting.
Allow the gearshift lever to center itself. With the shifter and the transmission in NEUTRAL, push the cable lock onto the cable.

Fig 3: Pushing Cable Lock Onto Cable
Courtesy of FORD MOTOR CO.
Engage the safety lock by sliding it over the primary shift cable lock.

Fig 4: Engaging Safety Lock
Courtesy of FORD MOTOR CO.
Check for normal operation.
