Wheel and Tire - Front: Notes

WARNING: This page is about a different car, the 2004 Lincoln LS and 2003 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Identifying Special Tool
G00370632Courtesy of FORD MOTOR CO.
  1. Remove the components in the order indicated in the following illustration and table.
    TO REMOVE INDIVIDUAL COMPONENTS, ONLY CARRY OUT THE LISTED STEPS

    Components Steps
    Wheel & Tire Assembly 1-2
    Wheel Stud 1-6
  2. To install, reverse the removal procedure.
Fig 2: Identifying Figure Symbols
G00228501Courtesy of FORD MOTOR CO.

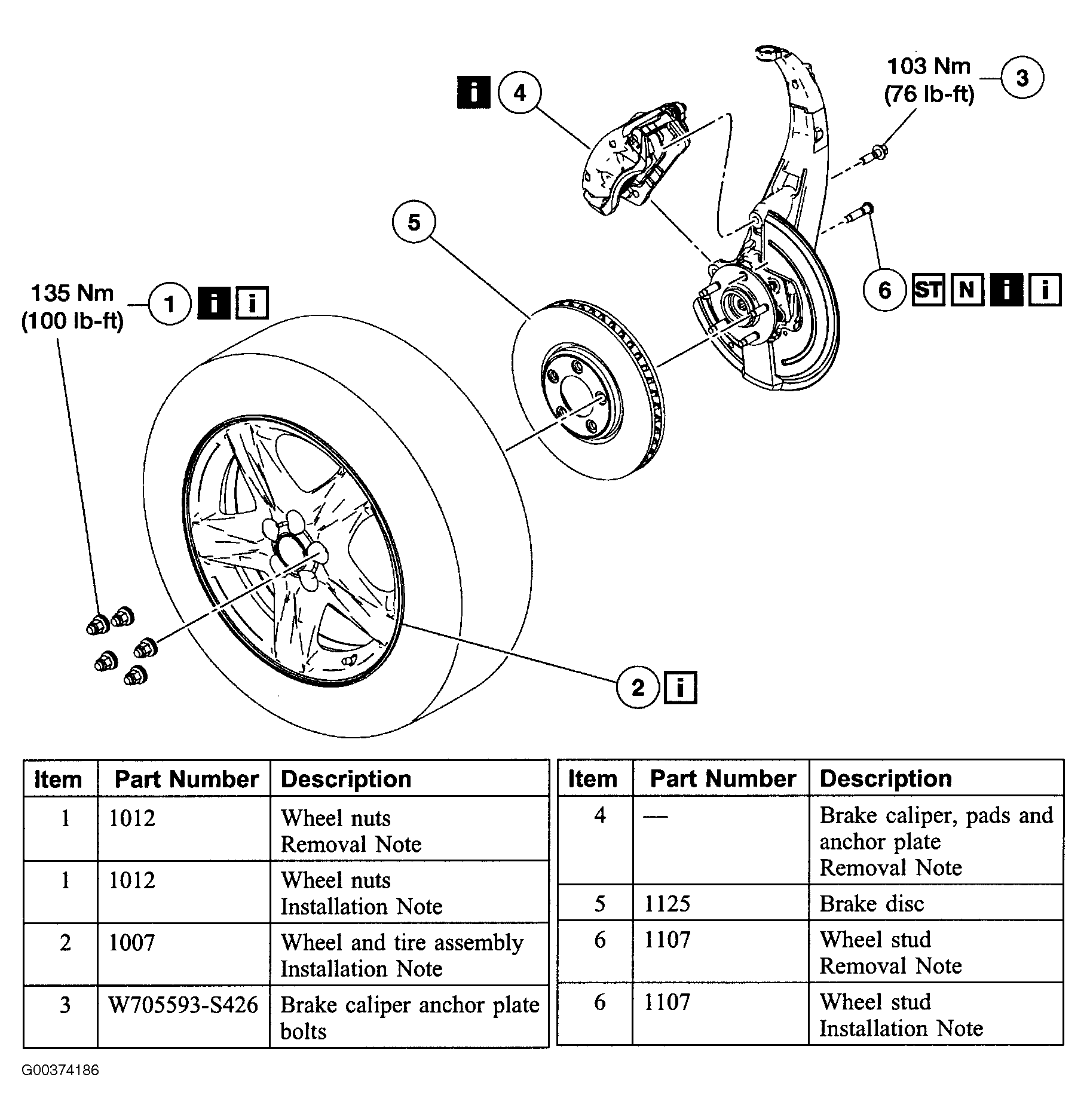

Fig 3: Wheel & Tire
G00374186Courtesy of FORD MOTOR CO.
