Item 21: Lower Arm-to-Frame Bolt Removal Note

WARNING: This page is about a different car, the 2004 Lincoln LS and 2003 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the nuts and bolts, position the steering gear aside, and then remove the lower arm bolt.

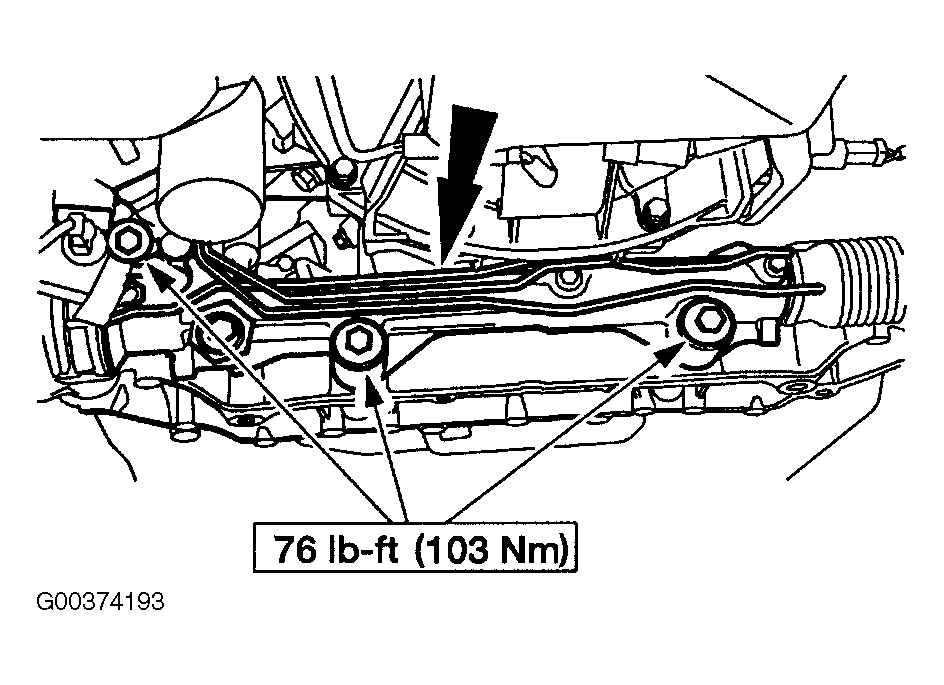

    Fig 1: Identifying Steering Gear Bolts
    G00374193Courtesy of FORD MOTOR CO.
