Stabilizer Bar and Link - Front
WARNING: This page is about a different car, the 2004 Lincoln LS and 2003 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Make sure that the stabilizer bar and brackets do not make contact with the radiator or damage to the radiator can occur.
NOTE:
Use the hex holding feature to prevent the studs from turning while removing or installing the stabilizer bar link nuts.
- Remove the engine cooling fan.
- With the vehicle in NEUTRAL, position on a hoist.
- Remove the front and left side deflector shields.

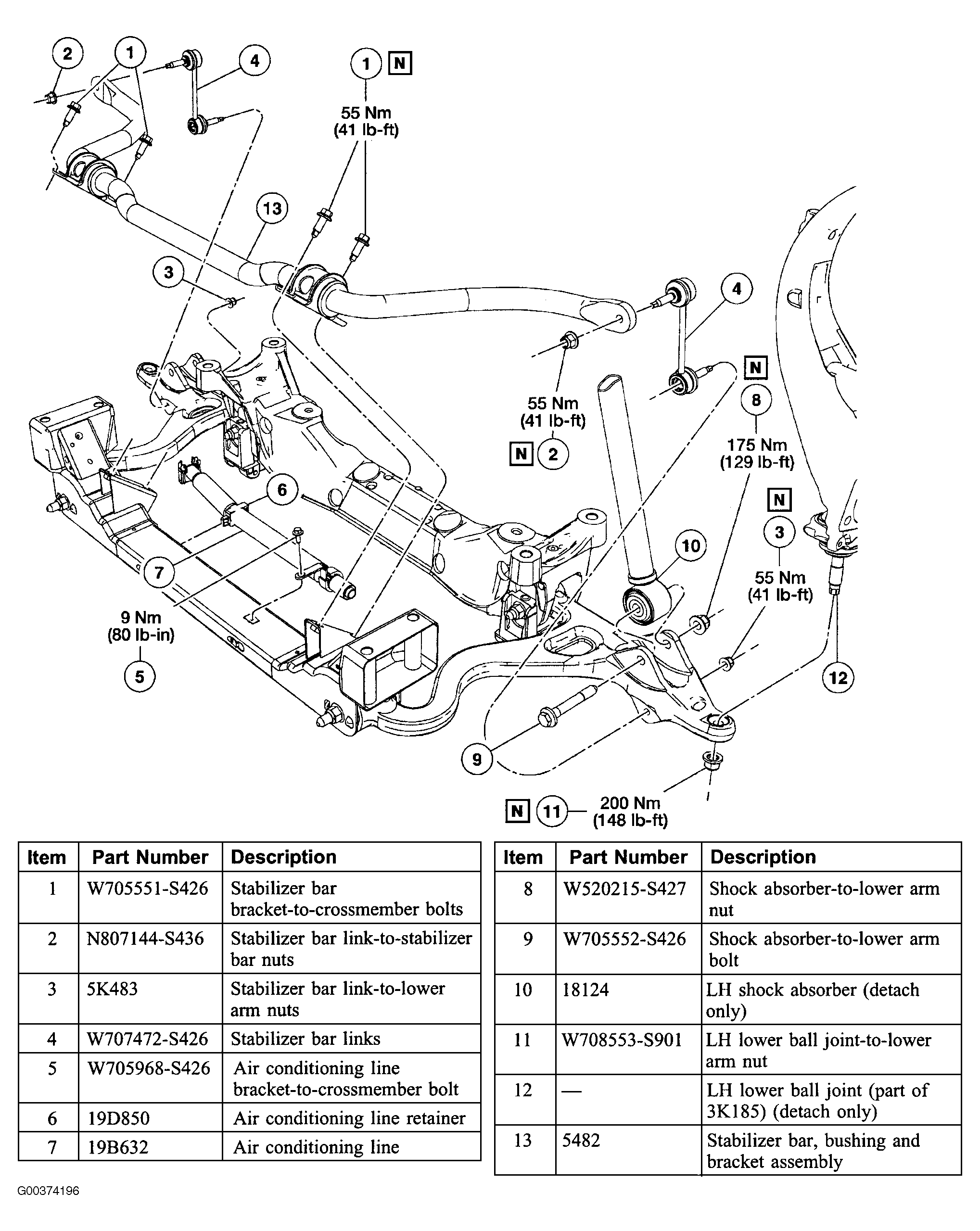

- Remove the components in the order indicated in the following illustration and table.
- To install, reverse the removal procedure.
