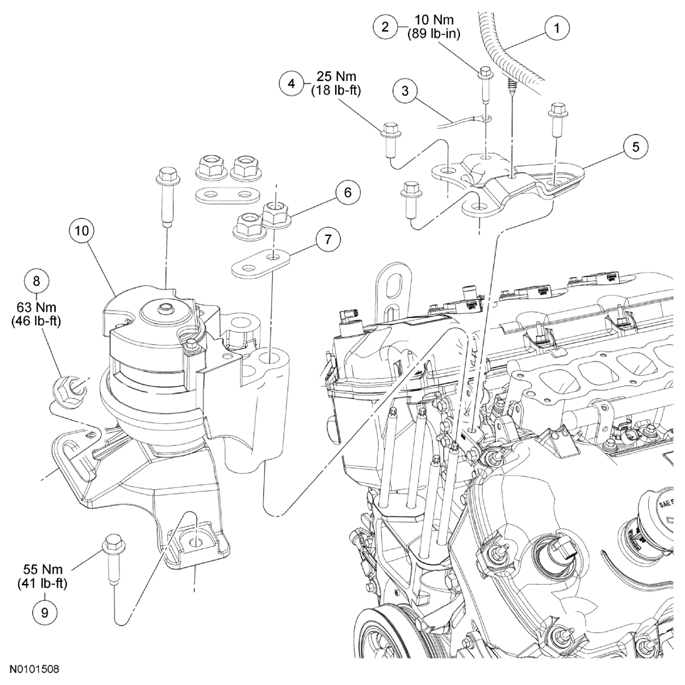

Engine Mount (View 3 of 3)
WARNING: This page is about a different car, the 2011 Lincoln MKZ and 2011 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | 3493 | Power steering hose retainer |
| 2 | W705936 | Ground wire bolt |
| 3 | 19A905 | Ground wire |
| 4 | W708764 | Engine mount brace bolt (3 required) |
| 5 | 6K075 | Engine mount brace |
| 6 | W705891 | Engine mount-to-engine nut (4 required) |
| 7 | 6B095 | Engine mount spacer (2 required) |
| 8 | W705891 | Engine mount-to-frame nut |
| 9 | W500720 | Engine mount-to-frame bolt (2 required) |
| 10 | 6038 | Engine mount |
