Cylinder Head: Assembly

WARNING: This page is about a different car, the 2011 Mercury Milan and 2011 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
  1. Using the Valve Stem Oil Seal Installer, install the valve stem seal.

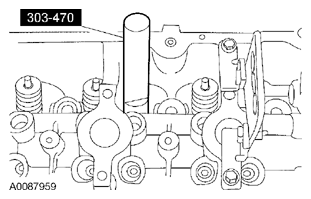

    Fig 1: Installing Valve Stem Seal Using Valve Stem Oil Seal Installer
    G07781650Courtesy of FORD MOTOR CO.
  2. Install the valve.
  3. Using the Valve Spring Compressors, install the valve spring, retainer and keys.

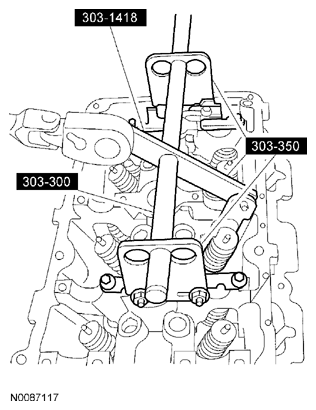

Fig 2: Remove/Install Keys, Retainer And Spring Using Valve Spring Compressors
G07781651Courtesy of FORD MOTOR CO.
