Transmission Bolts for Oil Pan Removal
WARNING: This page is about a different car, the 2011 Mercury Milan and 2011 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

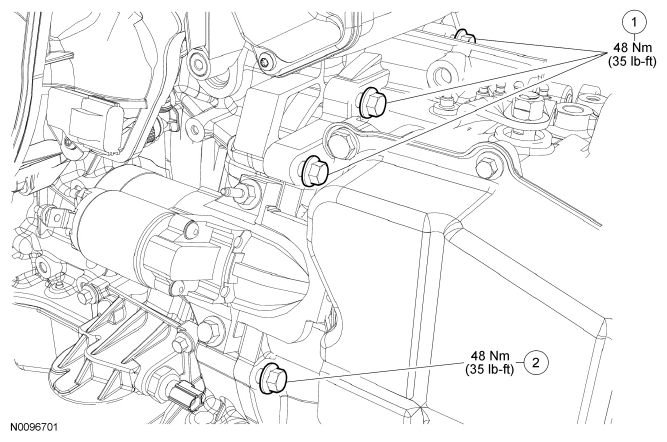

Automatic transmission shown in the illustration, manual transmission similar.
Courtesy of FORD MOTOR CO. ITEM DESCRIPTION
| Item |
Part Number |
Description |
| 1 |
W500121 |
Upper bellhousing-to-engine bolts |
| 2 |
W500121 |
LH bellhousing-to-engine bolt (1 required for automatic transmission, 2 required for manual transmission) |
