Typical Diagnostic Reference Values

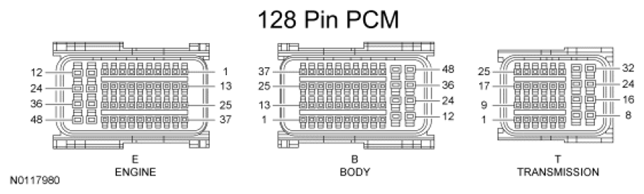

SENSORS/INPUTS - 1.6L 4V FIESTA
| Sensors/Inputs | PCM Pin/PID only | Measured/PID Values | Units Measured/PID | |||
|---|---|---|---|---|---|---|
| KOEO | Hot Idle | 48 KM/H (30 MPH) | 89 KM/H (55 MPH) | |||
| BOO1 | B2 | OFF | ON (E) | OFF | OFF | ON/OFF |
| FPM | B4 | 59.21 | 59.21 | 59.21 | 59.21 | % |
| CPP_BOT | B7 | NO | NO | NO | NO | YES/NO |
| ACP_V | B28 | 1.30 | 1.12 | 1.18 | 1.18 | VOLTS |
| BOO2 | B29 | OFF | ON (E) | OFF | OFF | ON/OFF |
| ECT | E15 | 1.00/55 (131) | 0.45/85 (185) | 0.44/86 (186.8) | 0.43/87 (188.6) | VOLTS/DEG C (DEG F) |
| TP1 | E16 | 0.81 | 0.54 | 0.61 | 0.85 | VOLTS |
| O2S12 | E20 | (I) | (D) | (D) | (D) | VOLTS |
| O2S11 | E21 | (I) | switching (C) | switching (C) | switching (C) | VOLTS |
| IAT | E26 | 0.45/40 (104) | 0.96/18 (64.4) | 0.98/17 (62.6) | 1.02/16 (60.8) | VOLTS/DEG C (DEG F) |
| TP2 | E27 | 4.18 | 4.44 | 4.39 | 3.90 | VOLTS |
| MAF | E37 | 0.01 | 0.59 | 1.34 | 1.86 | VOLTS |
| APP1 [APP_D] | E44 | 1.96 | 1.96 | 1.96 | 1.96 | % |
| ACP_PRESS | PID | 100.34/691.81 | 77.43/533.86 | 84.53/582.81 | 84.53/582.81 | PSI/kPa |
| APP | PID | 0 | 0 | 0 | 0 | % |
| APP2 | [APP_E] | PID | 8.06 | 8.23 | 8.23 | 8.23 % |
| BARO | PID | 14.35/156.11/99.00 | 14.35/156.11/99.00 | 14.35/156.11/99.00 | 14.35/156.11/99.00 | PSI/Hz/kPa |
| B+ | PID | 12.7 | 13-14 | 13-14 | 13-14 | VOLTS |
| CPP | PID | NO | NO | NO | NO | YES/NO |
| EVAP_ACTIVE | PID | OFF | OFF | OFF | OFF | ON/OFF |
| EVAP_EVAL | PID | NO | NO | NO | NO | YES/NO |
| EVAP_SWITCH | PID | OPEN | OPEN | OPEN | OPEN | OPEN/CLOSED |
| FLI | PID | 70.19 | 57.25 | 66.66 | 67.84 | % |
| FTP_INF | PID | 0 | -0.09/-0.62 | -0.11/-0.75 | -0.18/-1.24 | PSI/kPa |
| LOAD | PID | 0(I) | 24.70 | 35.68 | 62.35 | % |
| MP_LRN | PID | YES | YES | YES | YES | YES/NO |
| OUTDR_TMP | PID | 23 (73.4) | 13 (55.4) | 14 (57.2) | 14 (57.2) | DEG C (DEG F) |
| O2SHTR_EVAL | PID | YES | YES | YES | YES | YES/NO |
| O2S_EVAL | PID | YES | YES | YES | YES | YES/NO |
| RPM | PID | 0 | 755 | 1809 | 3334 | RPM |
| SYNC | PID | NO | YES | YES | YES | YES/NO |
| THROTTLE_CMD | PID | 5.49 | 0.78 | 1.96 | 5.88 | % |
| TP | REL | PID | 5.09 | 0.39 | 1.56 | 5.88 VOLTS |
| TP1_ADP_CLSD | PID | 0.49 | 0.49 | 0.49 | 0.49 | VOLTS |
| TP1_ADP_LIMP | PID | 0.81 | 0.81 | 0.81 | 0.81 | VOLTS |
| TP1_ADP_MINAIR | PID | 0.49 | 0.49 | 0.49 | 0.49 | VOLTS |
| TP2_ADP_CLSD | PID | 4.49 | 4.49 | 4.49 | 4.49 | VOLTS |
| TP2_ADP_LIMP | PID | 4.18 | 4.18 | 4.18 | 4.18 | VOLTS |
| TPMODE | PID | CT | CT | PT | PT | CLOSED/PART/WIDE OPEN THROTTLE |
| VCT_EXH_DIF1 | PID | 0 | 0 | 0 | 2.25 | % |
| VCT_INT_ACT1 | PID | 139.87 | 139.87 | 139.87 | 136.12 | DEG |
| VCT_INT_DIF1 | PID | 0 | 0 | 0 | 2.62 | DEG |
| VSS | PID | 0 | 0 | 48 km/h (30 MPH) | 89 km/h (55 MPH) | km/h/MPH |
ACTUATORS - 1.6L 4V FIESTA
| Actuators/Outputs | PCM Pin/PID only | Measured/PID Values | Units Measured/PID | |||
|---|---|---|---|---|---|---|
| KOEO | Hot Idle | 48 KM/H (30 MPH) | 89 KM/H (55 MPH) | |||
| EVAPCP | E23 | 0 | 17.25 | 33.72 | 67.05 | % |
| HTR12 | E35 | OFF | ON | ON | ON | ON/OFF |
| LFC | B13 | OFF | OFF | OFF | OFF | ON/OFF |
| HTR11 | E47 | OFF | ON | ON | ON | ON/OFF |
| FUELPW_CYL1-4 | PID | 10.74 | 2.96 | 2.23 | 2.23 | MILLISECOND |
| FUELSYS | PID | OPEN LOOP | CLOSED LOOP | CLOSED LOOP | CLOSED LOOP | OPEN/CLOSED LOOP |
| HFC | PID | OFF | OFF | OFF | OFF | ON/OFF |
| LONGFT1 | PID | (I) | -20 TO +20 | -20 TO +20 | -20 TO +20 | % |
| MAP_DMD | PID | 14.49/99.9 | 4.78/32.95 | 6.99/48.19 | 11.33/78.11 | PSI/kPa |
| PATSENABL | PID | ENABLED | ENABLED | ENABLED | ENABLED | ENABLED/DISABLED |
| SHRTFT1 | PID | (I) | -10 TO +10 | -10 TO +10 | -10 TO +10 | % |
| SPARKADV | PID | 24 | 6.5 | 1.5 | 12 | DEG |
| VCT_EXH_ACT1 | PID | -120.75 | -121.12 | -121.12 | -79.50 | DEG |
| VCT_EXH_DC1 | PID | 12.50 | 11.32 | 11.32 | 40.03 | % |
| VCT_EXH_DSD1 | PID | 0.37 | 0 | 0 | 42.37 | DEG |
| VCT_INT_DC1 | PID | 12.50 | 11.32 | 11.32 | 43.66 | % |
| VCT_INT_DSD1 | PID | 0 | 0 | 0 | 1.87 | DEG |
OTHER - 1.6L 4V FIESTA
| Sensors/Inputs | PCM Pin/PID only | Measured/PID Values | Units Measured/PID | |||
|---|---|---|---|---|---|---|
| KOEO | Hot Idle | 48 KM/H (30 MPH) | 89 KM/H (55 MPH) | |||
| VPWR | B8/11/12 | 12.52 | 13-14 | 13-14 | 13-14 | VOLTS |
| VREF | B16, T27, T29 | 5 | 5 | 5 | 5 | VOLTS |
