Wheel Bearing, Hub, Knuckle, Upper Arm and Lower Arm - Rear: Notes

WARNING: This page is about a different car, the 2004 Lincoln LS and 2003 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

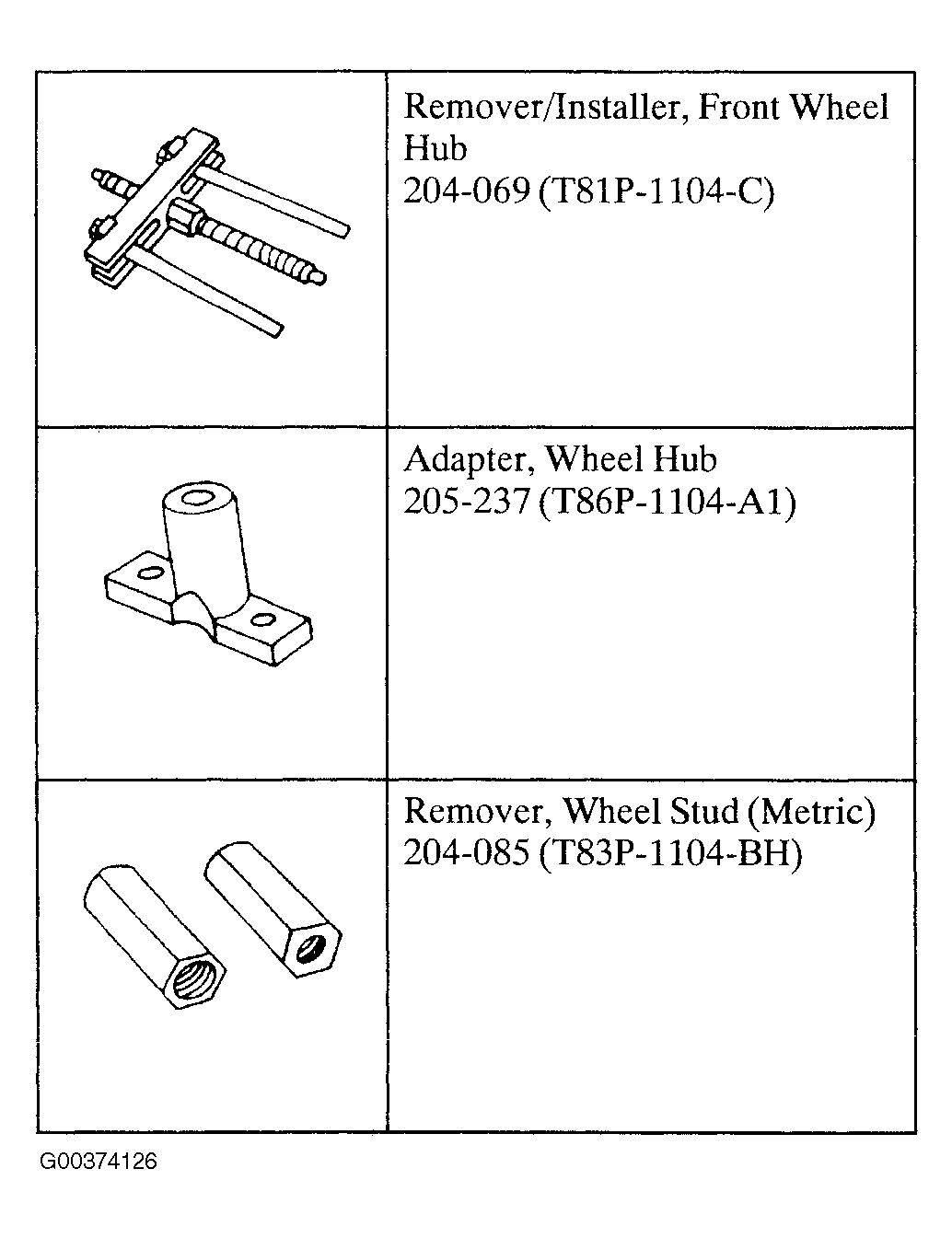

Fig 1: Identifying Special Tools
G00374126Courtesy of FORD MOTOR CO.
CAUTION: Use the hex holding feature to prevent the ball studs from turning when removing the ball stud nuts.
  1. For reference during the installation of an upper or lower arm, measure the distance between the center of the wheel hub and the lip of the fender with the weight of the vehicle resting on the wheel and tire assemblies.
    Fig 2: Identifying Measurement (Removal)
    G00371613Courtesy of FORD MOTOR CO.
  2. With the vehicle in NEUTRAL, position on a hoist.
  3. If removing the wheel knuckle or wheel hub and bearing, remove the brake disc. For additional information, refer to BRAKE SYSTEM for 2003 models or BRAKE SYSTEM for 2004 models..
    TO REMOVE INDIVIDUAL COMPONENTS, ONLY CARRY OUT THE LISTED STEPS

    Components Steps
    Wheel Knuckle 1-8
    Wheel Bearing 1-13
    Lower Arm 5, 6, 18-24
    Upper Arm 7, 14-17
    Toe Link 2, 3, 25, 26
  4. Illustration 1 of 2. Remove the components in the order indicated in the following illustration and table.
    Fig 3: Identifying Figure Symbols
    G00228501Courtesy of FORD MOTOR CO.
    Fig 4: Rear Suspension Components (1 Of 2)
    G00374143Courtesy of FORD MOTOR CO.
  5. Illustration 2 of 2. Remove the components in the order indicated in the following illustration and table.

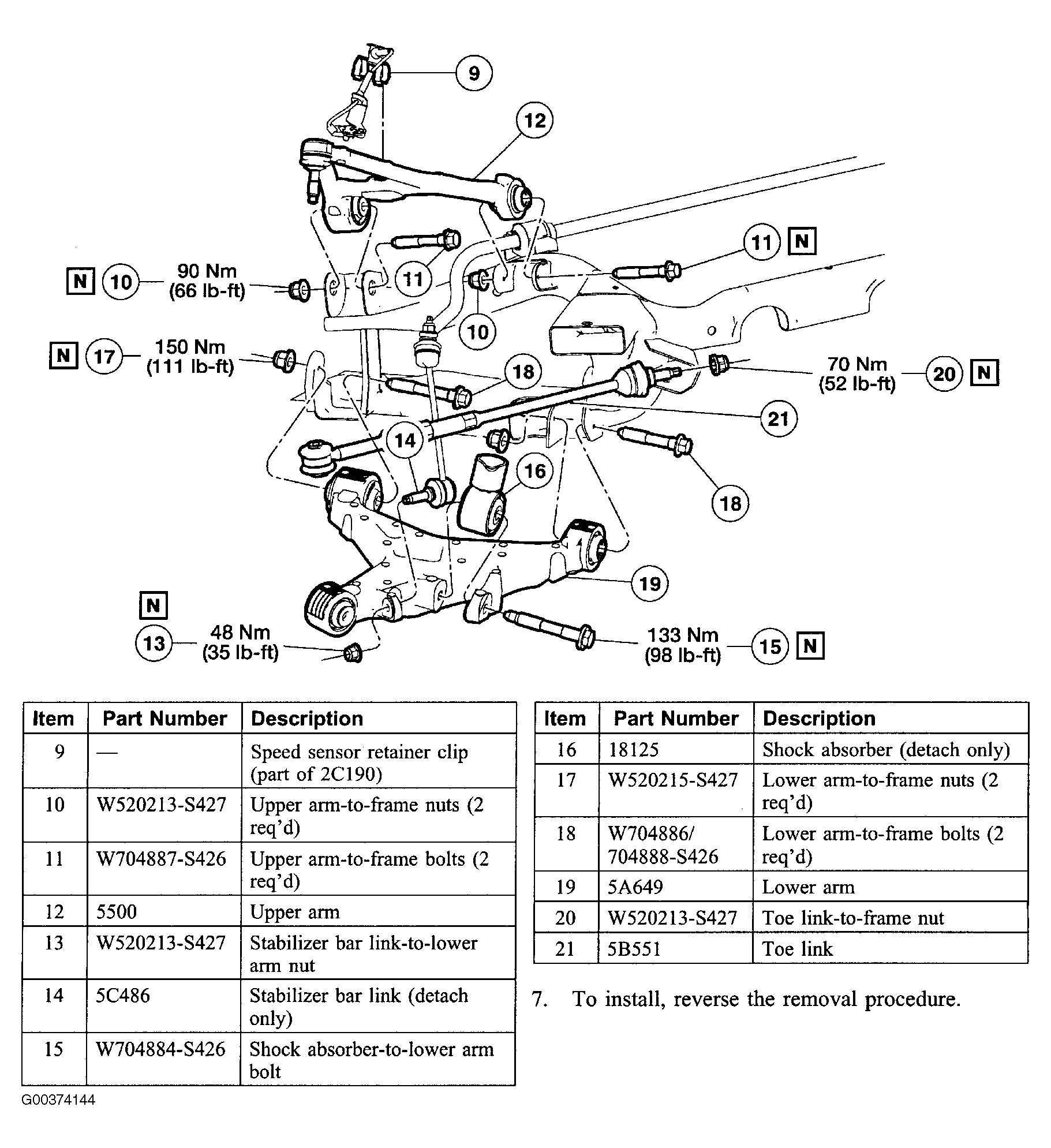

    Fig 5: Rear Suspension Components (2 Of 2)
    G00374144Courtesy of FORD MOTOR CO.
  6. To install, reverse the removal procedure.
  7. Before tightening the upper or lower arm-to-frame fasteners, position a jack under the lower arm and raise the vehicle until the distance between the center of the hub and the lip of fender is equal to the measurement taken during the removal procedure.
    Fig 6: Identifying Measurement (Installation)
    G00371618Courtesy of FORD MOTOR CO.
  8. Check and, if necessary, align the rear end. For additional information, refer to SPECIFICATIONS & PROCEDURES .
