Shock Absorber and Spring Assembly - Rear: Notes

WARNING: This page is about a different car, the 2004 Lincoln LS and 2003 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

With the vehicle in NEUTRAL, position on a hoist.
Position the luggage compartment trim panel aside.

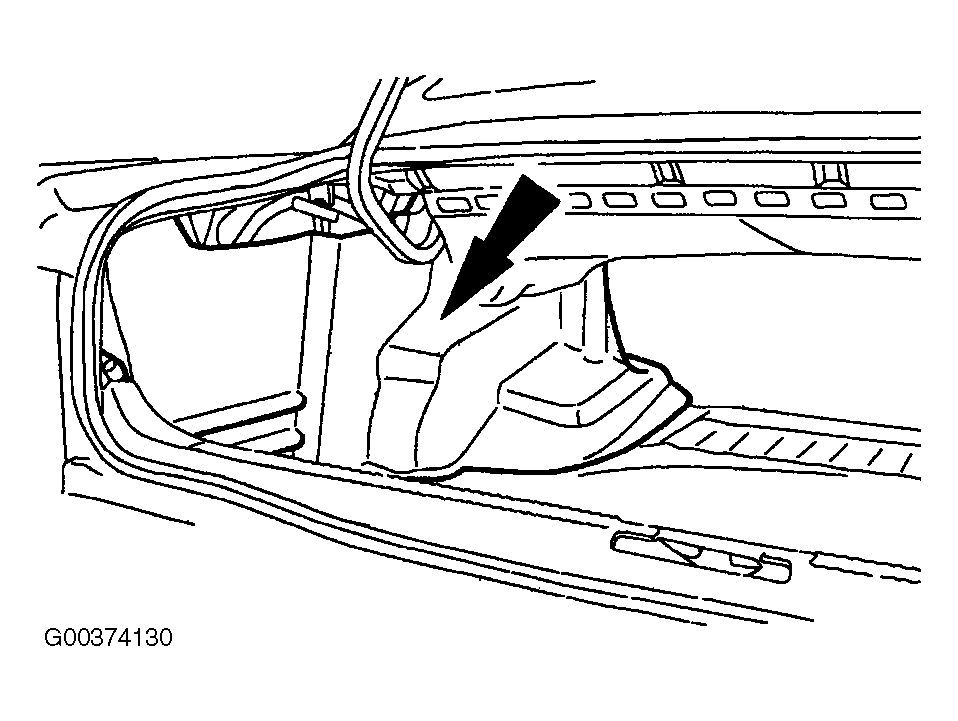

Fig 1: Identifying Trim Cover
Courtesy of FORD MOTOR CO.
Remove the components in the order indicated in the following illustration and table.
To install, reverse the removal procedure.

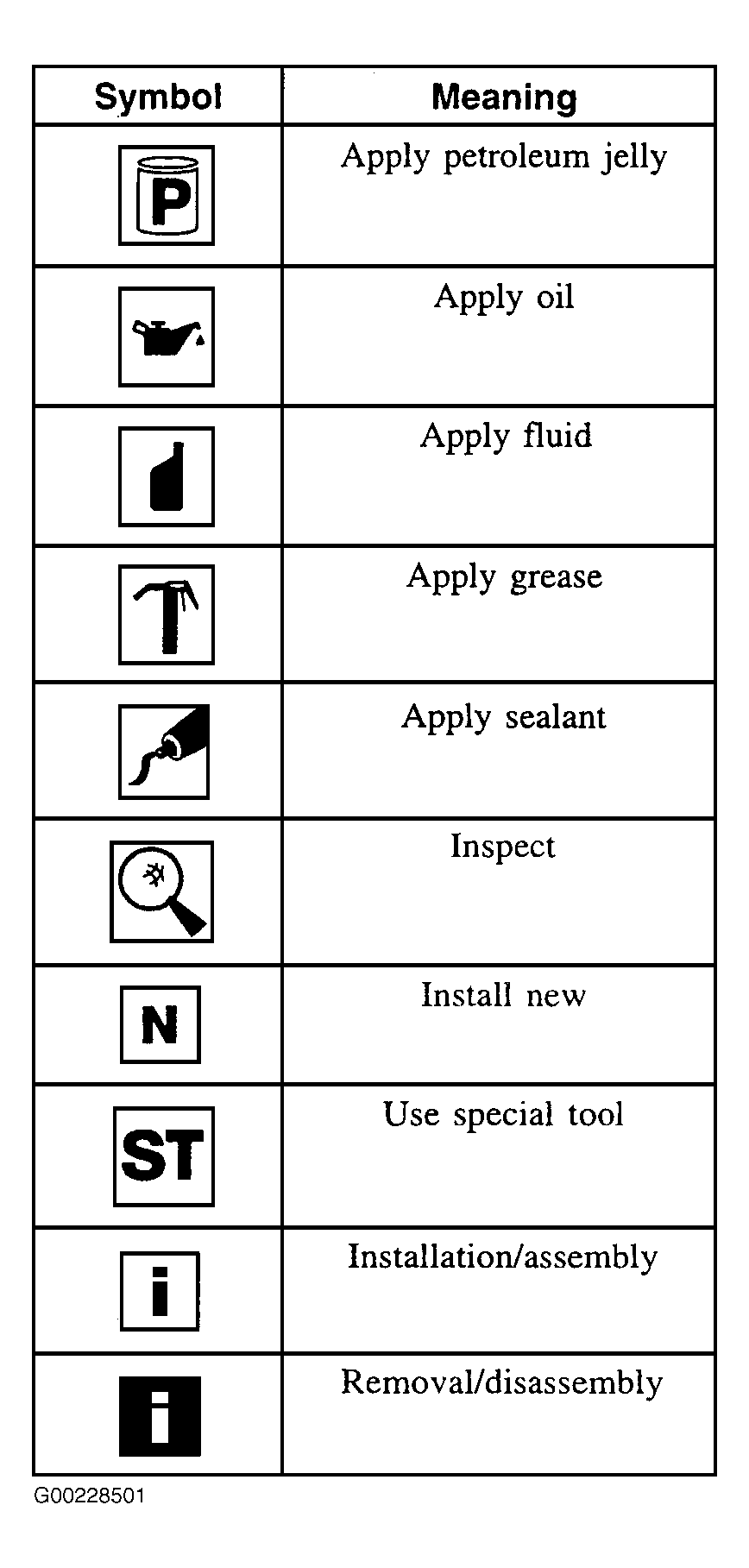

Fig 2: Identifying Figure Symbols

Courtesy of FORD MOTOR CO.

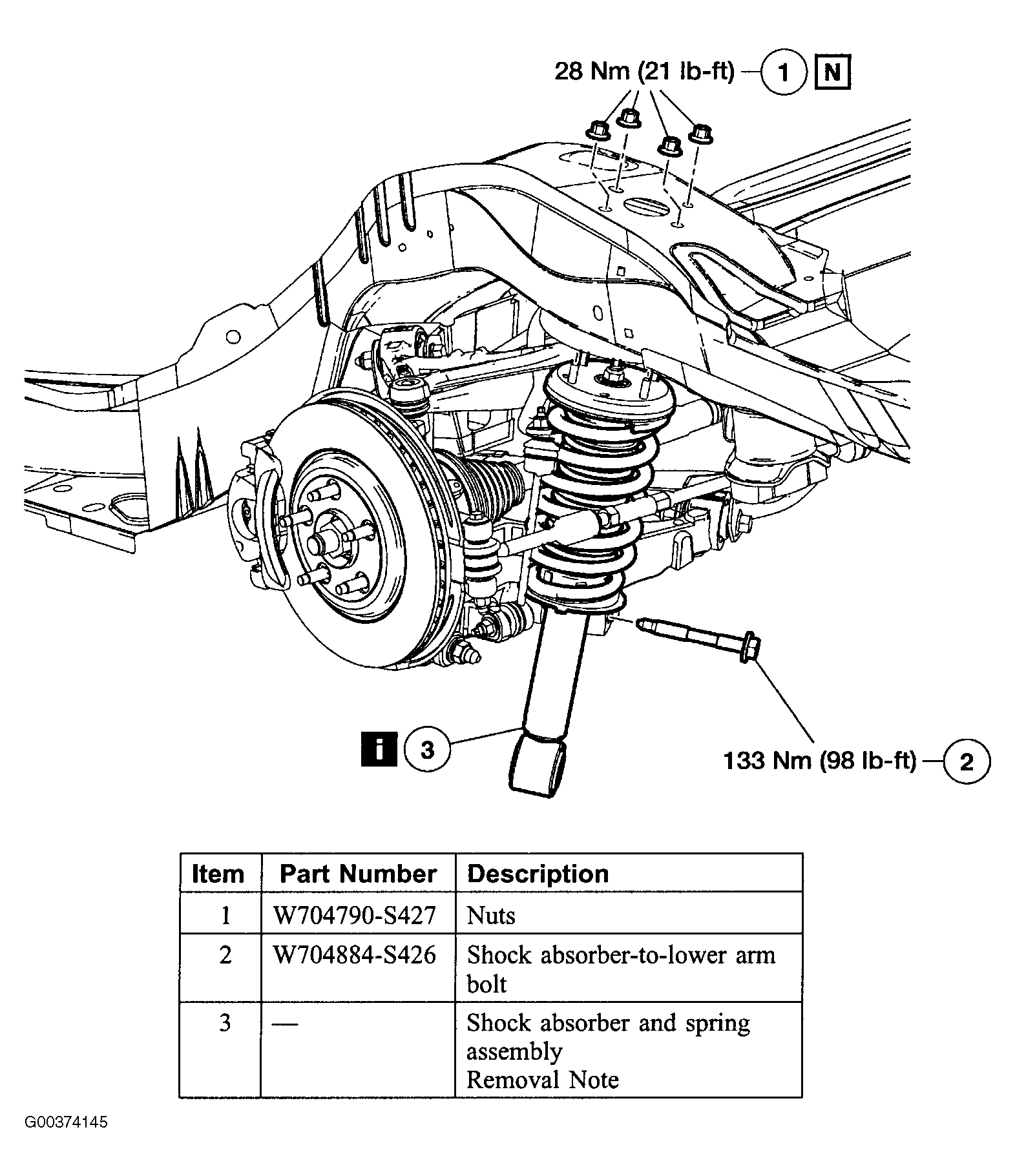

Fig 3: Shock Absorber & Spring

Courtesy of FORD MOTOR CO.
