Engine Cranking Mode
WARNING: This page is about a different car, the 2011 Mercury Milan, 2011 Lincoln MKZ, 2011 Ford Fusion, 2010 Mercury Milan, and 2010 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

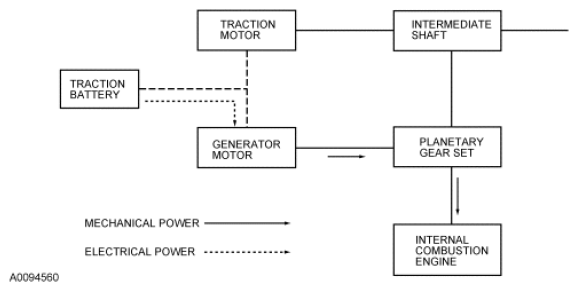

The electronically controlled CVT provides the engine cranking function to start or restart the internal combustion engine. When the PCM requests the engine cranking mode, the generator motor rapidly accelerates the engine speed up to about 950 RPM in about 0.3 seconds. When the engine speed reaches a calibrated speed the PCM commands the delivery of fuel and spark at the appropriate times.
