Video Camera Connector - C4357

WARNING: This page is about a different car, the 2011 Lincoln MKT. However, it is still accessible from the selected car via links, so may be relevant.

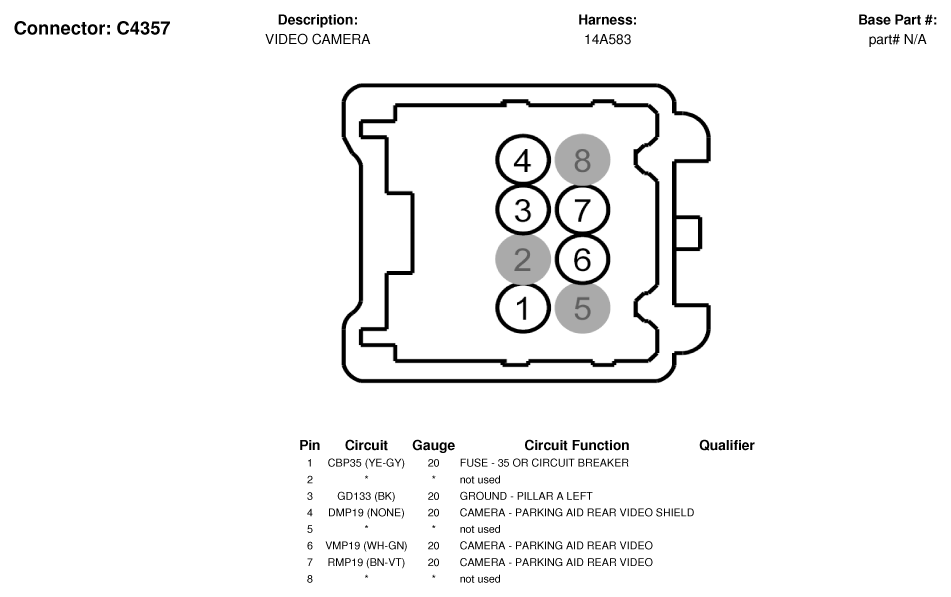

Fig 1: Video Camera Connector End View (C4357)
G07336438Courtesy of FORD MOTOR CO.
