Third Row Seat Interior Lamp/ Map Lamp Assembly Connector - C932

WARNING: This page is about a different car, the 2011 Lincoln MKT. However, it is still accessible from the selected car via links, so may be relevant.

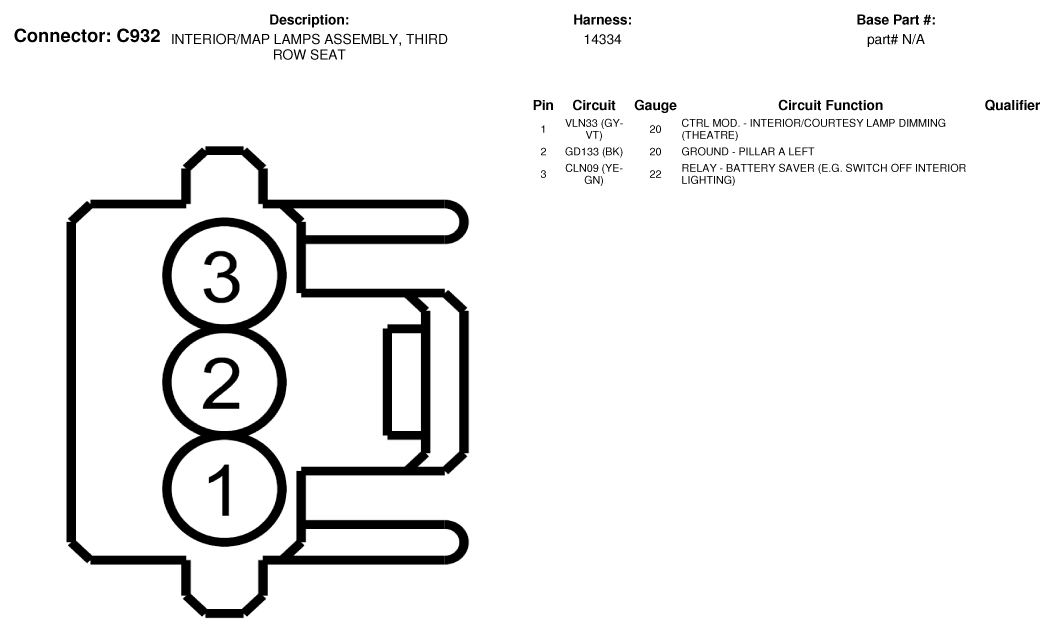

Fig 1: Third Row Seat Interior Lamp/ Map Lamp Assembly Connector End View (C932)
G07336177Courtesy of FORD MOTOR CO.
