Right Third Row Power Seat Latch Switch Connector - C4242

WARNING: This page is about a different car, the 2011 Lincoln MKT. However, it is still accessible from the selected car via links, so may be relevant.

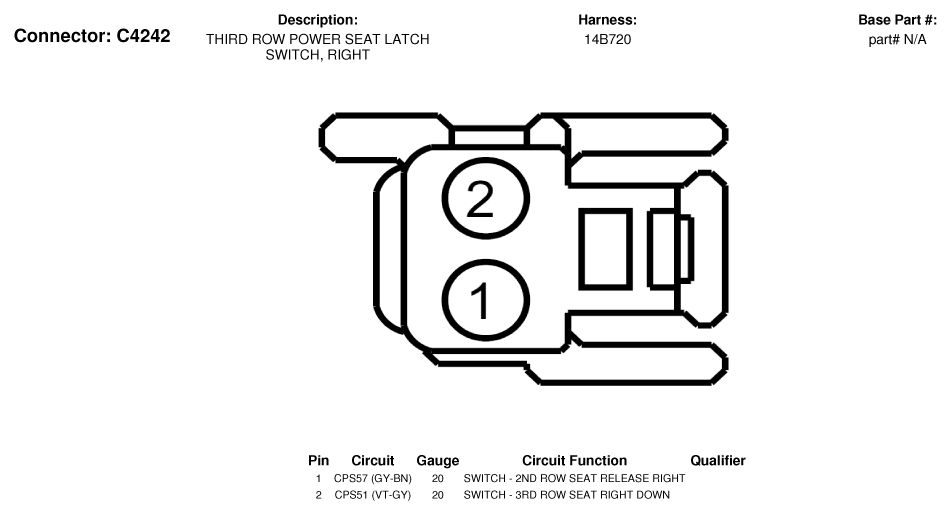

Fig 1: Right Third Row Power Seat Latch Switch Connector End View (C4242)
G07336421Courtesy of FORD MOTOR CO.
