Right Third Row Power Seat Latch Connector - C4244

WARNING: This page is about a different car, the 2011 Lincoln MKT. However, it is still accessible from the selected car via links, so may be relevant.

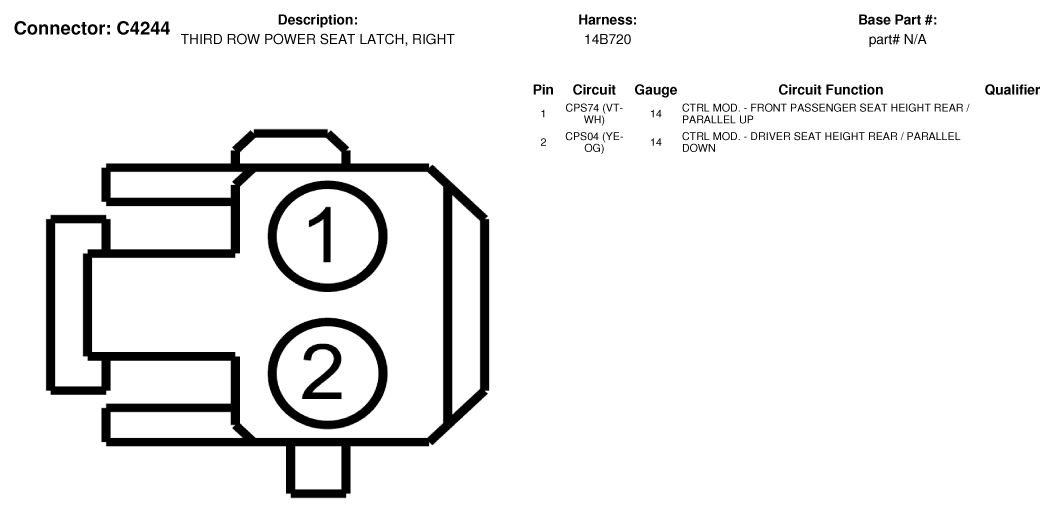

Fig 1: Right Third Row Power Seat Latch Connector End View (C4244)
G07336423Courtesy of FORD MOTOR CO.
