Rear Wiper Motor Assembly Connector - C476

WARNING: This page is about a different car, the 2011 Lincoln MKT. However, it is still accessible from the selected car via links, so may be relevant.

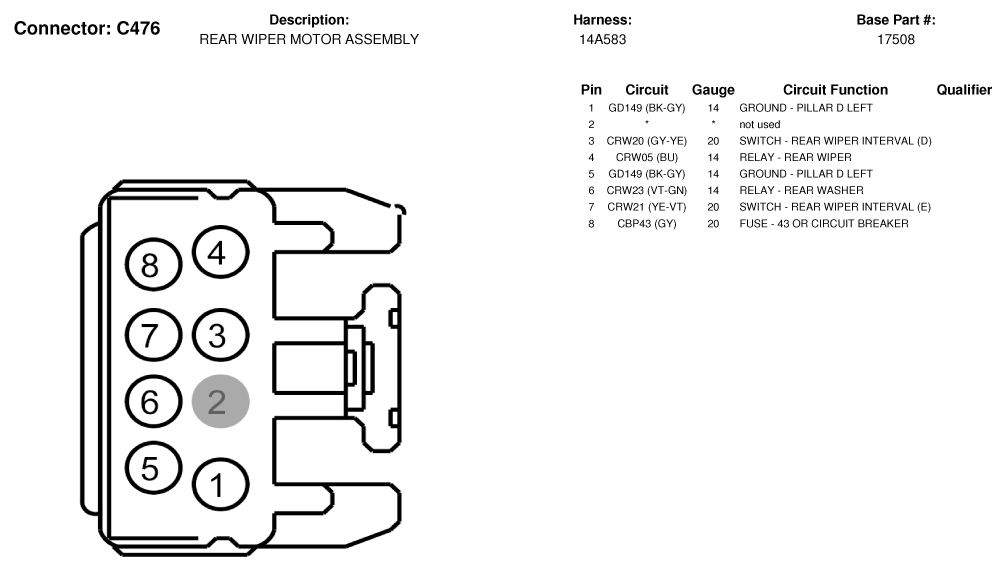

Fig 1: Rear Wiper Motor Assembly Connector End View (C476)
G07336125Courtesy of FORD MOTOR CO.
