Rear Keyless Entry Antenna Connector - C347

WARNING: This page is about a different car, the 2011 Lincoln MKT. However, it is still accessible from the selected car via links, so may be relevant.

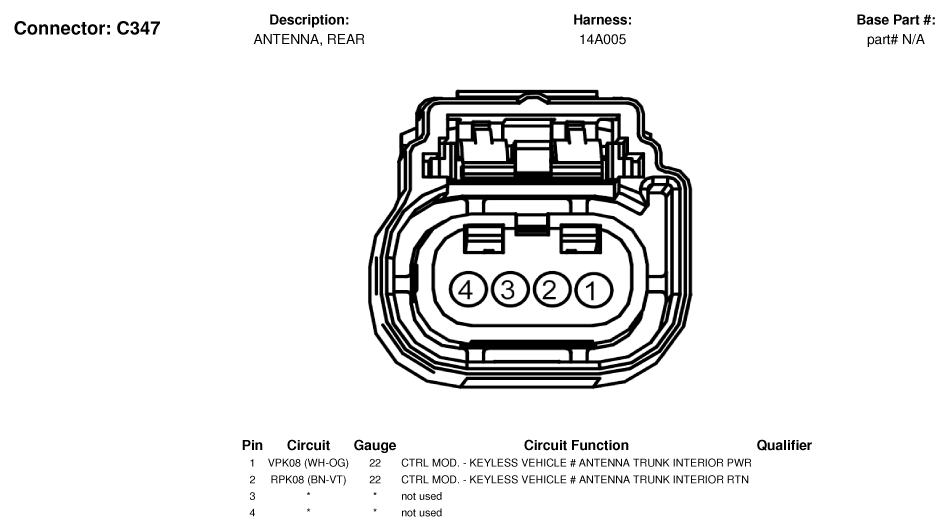

Fig 1: Rear Keyless Entry Antenna Connector End View (C347)
G07336097Courtesy of FORD MOTOR CO.
